AM3894CCYG135

The AM3894CCYG135 is a Sitara AM38xx series microprocessor IC from Texas Instruments featuring a single ARM® Cortex®-A8 32‑bit core running at 1.35 GHz in a 1031‑FCBGA (25×25) package. It targets embedded applications that require a balance of compute performance and integrated system interfaces for multimedia, networking, and storage functions.

With on‑chip multimedia acceleration and a set of integrated controllers and high‑speed interfaces, the device delivers a compact, connectivity‑focused platform for embedded systems in commercial environments.

Key Features

• CPU Core — Single ARM® Cortex®‑A8 32‑bit core at 1.35 GHz providing the primary application processing capability.
• Multimedia Acceleration — Includes multimedia coprocessors and NEON™ SIMD support plus graphics acceleration to assist media and signal processing tasks.
• Memory Support — Integrated DDR2 and DDR3 memory controllers for flexible system memory choices.
• Display and Video — Display interface controllers including HDMI and HDVPSS for high‑definition video output and processing.
• Networking and Storage — Dual 10/100/1000 Mbps Ethernet interfaces and a single SATA 3 Gbps port for wired networking and storage connectivity.
• USB and Peripheral I/O — Two USB 2.0 ports with PHY and additional I2C interface for common peripheral connections.

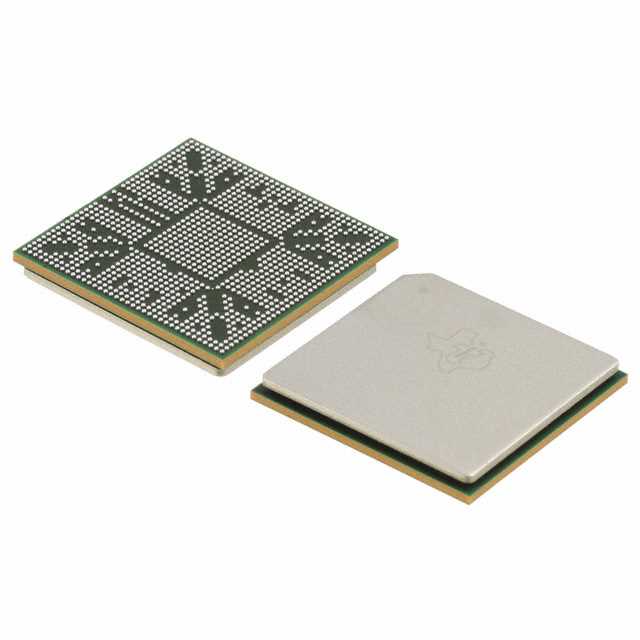

• Package and Mounting — 1031‑FCBGA (25×25) supplier device package; surface mount for board‑level integration.
• Operating Range and Grade — Commercial grade device with an operating temperature range of 0 °C to 95 °C and RoHS compliance.

Typical Applications

• Embedded Multimedia Systems — Use HDMI, HDVPSS and multimedia acceleration to drive high‑definition displays and video processing pipelines.
• Networked Gateways and Appliances — Dual Gigabit Ethernet and integrated storage support with SATA enable network gateway and appliance designs.
• Storage and NAS Devices — SATA 3 Gbps plus Ethernet connectivity support compact storage controllers and networked storage implementations.
• Human‑Machine Interfaces (HMI) — Combined display interfaces, graphics acceleration, and USB connectivity facilitate interactive user interfaces in commercial products.

Unique Advantages

• Balanced Single‑Core Performance: 1.35 GHz ARM® Cortex®‑A8 delivers targeted compute performance for embedded workloads without unnecessary multi‑core complexity.
• Integrated Multimedia and Graphics: On‑chip multimedia coprocessors, NEON™ SIMD and graphics acceleration reduce external hardware needs for video and media tasks.
• Comprehensive Connectivity: Dual Gigabit Ethernet, SATA 3 Gbps and dual USB 2.0 + PHY provide a broad set of wired interfaces for networking and storage applications.
• Flexible Memory Options: Support for DDR2 and DDR3 memory controllers enables designers to choose memory solutions that meet cost and performance targets.
• Compact Surface‑Mount Package: 1031‑FCBGA (25×25) package supports high‑density board layouts for space‑constrained designs.
• Commercial‑Grade and RoHS Compliant: Designed for commercial temperature operation (0 °C to 95 °C) and RoHS compliance for regulatory alignment.

Why Choose AM3894CCYG135?

The AM3894CCYG135 positions itself as a connectivity‑focused embedded microprocessor that combines a 1.35 GHz ARM® Cortex®‑A8 core with dedicated multimedia acceleration and a rich set of interfaces. Its integrated Ethernet, SATA, USB and display controllers simplify system design for applications that require media handling, network connectivity, and storage support in a commercial‑grade solution.

Engineers designing compact, integrated embedded products will find the AM3894CCYG135 suitable where a single‑core processor with multimedia capabilities, flexible memory support, and multiple high‑speed interfaces reduce BOM complexity and speed time to market.

Request a quote or submit your requirements to obtain pricing and availability for AM3894CCYG135.
