AM5708BCBDJA

The AM5708BCBDJA is a Sitara AM57xx-series microprocessor from Texas Instruments featuring a single ARM® Cortex®-A15 core running at 667 MHz. Designed for embedded applications, the device integrates high‑performance processing with multiple peripheral controllers to support multimedia, connectivity and storage functions.

Rated for commercial grade use with AEC‑Q100 qualification and RoHS compliance, this surface‑mount 538‑FCBGA (17×17) package targets systems requiring integrated interfaces and graphics acceleration within an operating range of 0 °C to 90 °C.

Key Features

• Core Processor — Single ARM® Cortex®‑A15 32‑bit core operating at 667 MHz for application processing tasks.
• Co‑processors — Integrated ARM® Cortex®‑M4 and C66x DSP cores for offloading real‑time control and signal processing workloads.
• Memory Controllers — Support for DDR3 and DDR3L memory controllers to enable flexible system memory configurations.
• Display and Graphics — HDMI and video display controllers plus graphics acceleration to support rich user interfaces and multimedia output.
• High‑Speed Connectivity — Dual Gigabit Ethernet (10/100/1000 Mbps) ports for robust network connectivity and two USB 3.0 plus two USB 2.0 ports for high‑bandwidth peripheral support.
• Storage and Peripheral Interfaces — Integrated SATA 3 Gbps port and multiple USB interfaces for local storage and peripheral integration.
• Automotive Qualification & Grade — AEC‑Q100 qualification is listed alongside a commercial grade designation, reflecting specific qualification data provided for this part.

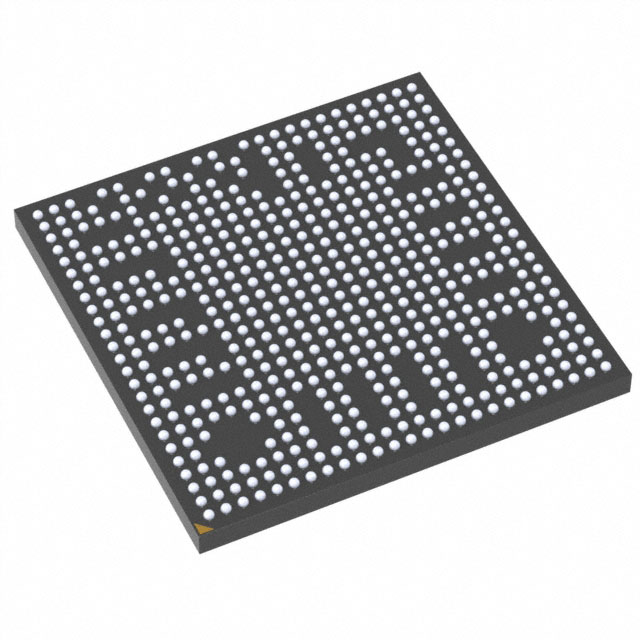

• Package & Mounting — 538‑FCBGA (17×17) package case with surface‑mount construction for compact board designs.
• Additional Interfaces — CAN interface available for control and vehicle/networked applications.
• Environmental Compliance — RoHS compliant.
• Operating Temperature — Specified operating range from 0 °C to 90 °C.

Typical Applications

• Embedded Multimedia Systems — HDMI, video controllers and graphics acceleration make the device suitable for systems requiring display and multimedia capabilities.
• Industrial Networking & Gateways — Dual Gigabit Ethernet and CAN support networking and gateway functions in embedded equipment.
• Storage and Peripheral Controllers — Integrated SATA and multiple USB ports enable local storage and high‑throughput peripheral connectivity.
• Real‑Time Control and Signal Processing — On‑chip Cortex‑M4 and C66x DSP co‑processors allow partitioning of real‑time control and signal processing tasks from application processing.

Unique Advantages

• Balanced Processing Architecture: A 667 MHz Cortex‑A15 application core plus Cortex‑M4 and C66x co‑processors enable task partitioning between application, control and DSP workloads.
• Integrated Multimedia and Graphics: HDMI/video controllers and graphics acceleration reduce the need for external display controllers, simplifying HMI designs.
• Comprehensive Connectivity: Dual Gigabit Ethernet, CAN, SATA and multiple USB ports provide a wide range of wired interfaces for networking, storage and peripherals.
• Flexible Memory Support: DDR3 and DDR3L memory controller support allows designers to optimize for performance or power in system memory selection.
• Compact, Surface‑Mount Package: 538‑FCBGA (17×17) packaging enables dense board layouts while providing the pinout needed for integrated interfaces.
• Qualification and Compliance: AEC‑Q100 qualification and RoHS compliance are provided in the product data, supporting regulated design requirements.

Why Choose AM5708BCBDJA?

The AM5708BCBDJA combines a 667 MHz ARM® Cortex®‑A15 application core with dedicated Cortex‑M4 and C66x co‑processors, delivering a flexible platform for embedded systems that require a mix of application processing, real‑time control and DSP capabilities. Its array of integrated interfaces—dual Gigabit Ethernet, CAN, SATA, USB 3.0/2.0 and HDMI—reduces the need for external controllers and helps streamline system BOM and board complexity.

As part of the Texas Instruments Sitara AM57xx series, this device is suitable for commercial embedded designs that demand integrated multimedia, networking and storage functionality within a compact 538‑FCBGA package and an operating range of 0 °C to 90 °C. The provided AEC‑Q100 qualification and RoHS compliance further support designs with defined qualification and environmental requirements.

Request a quote or submit your specification to receive pricing and availability for the AM5708BCBDJA. Our team can provide detailed lead‑time and ordering information tailored to your project needs.
