ATSAMA5D27C-LD1G-CU

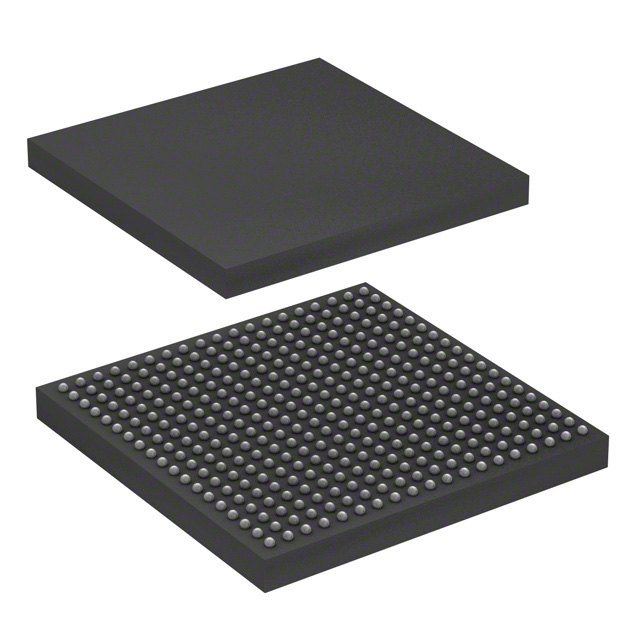

The ATSAMA5D27C-LD1G-CU is an ARM® Cortex®-A5 based microprocessor IC featuring a single 32-bit core running at 500 MHz in a 361-TFBGA (16×16) surface-mount package. It is part of the SAMA5D2 series and provides a high-performance, ultra‑low‑power MPU architecture with integrated system-level features suited to embedded and industrial designs.

Designed for applications requiring display, connectivity and security capabilities, the device combines a Cortex‑A5 core with multimedia acceleration, a broad set of memory controllers and multiple peripheral interfaces to simplify system design and integration.

Key Features

• Core  ARM® Cortex®-A5 single core, 32‑bit, 500 MHz for embedded compute and control tasks.
• Memory & Integration  On-package System‑in‑Package (SIP) options are available in the SAMA5D2 series that integrate the MPU with LPDDR2/DDR2 memory; TFBGA361 package options support 1 Gbit and 2 Gbit LPDDR2‑SDRAM (as described in SAMA5D2 SIP documentation).
• Memory Controllers  Support for LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L and QSPI memory interfaces for flexible system memory choices.
• Multimedia & Acceleration  Multimedia DSP co‑processor and NEON™ MPE plus graphics acceleration for UI and media workloads.
• Display & Input  Integrated display interface controllers for LCD, touchscreen and keyboard support to enable human‑machine interfaces.
• Connectivity  10/100 Mbps Ethernet (1), USB 2.0 with HSIC and I2C peripheral interface for wired connectivity and sensor/board communications.
• Security  Built‑in security features including ARM TrustZone (TZ), boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory and secure RTC for device and data protection.
• Power & I/O  3.3 V I/O voltage specification for standard embedded system interfacing.
• Package & Temperature  361‑TFBGA (16×16) surface mount package; industrial grade operation from −40 °C to 85 °C.
• Compliance  RoHS compliant.

Typical Applications

• Industrial Systems  Use in industrial control and monitoring where industrial temperature range and robust security features are required.
• Human‑Machine Interfaces (HMI)  Drive LCD/touchscreen displays and keyboard inputs with multimedia acceleration to enable responsive operator interfaces.
• Secure Embedded Gateways  Combine Ethernet, USB and on‑device security primitives to implement secure networked endpoints or gateways.
• Multimedia and Embedded Devices  Leverage the multimedia DSP and NEON MPE for lightweight media processing and graphics acceleration in embedded applications.

Unique Advantages

• Highly integrated SIP options: SAMA5D2 SIP configurations integrate the MPU with LPDDR2/DDR2 memory in a single package, reducing PCB routing complexity and board area.
• Flexible memory support: On‑chip memory controllers for LPDDR/DDR and QSPI give designers options across performance and cost targets.
• Comprehensive security stack: Multiple hardware security features (TrustZone, secure JTAG, secure memory, secure RTC, cryptography and secure fusebox) enable hardened boot and runtime protection.
• Industrial temperature rating: Operation from −40 °C to 85 °C suits deployment in industrial environments.
• Rich peripheral set: Ethernet, USB 2.0 + HSIC, I2C and display/input controllers simplify system integration for connected, interactive products.
• Vendor documentation: Part of the SAMA5D2 series with dedicated datasheet and product documentation to support design integration and validation.

Why Choose ATSAMA5D27C-LD1G-CU?

The ATSAMA5D27C-LD1G-CU positions itself as a compact, industrial‑grade MPU solution that balances performance (500 MHz Cortex‑A5) with system integration and security. Its support for multiple memory interfaces, multimedia acceleration and a rich peripheral set make it suitable for embedded designs that require display capability, wired connectivity and robust device security.

Engineers designing industrial HMI, secure gateways or compact multimedia‑enabled endpoints will find this SAMA5D2 series device simplifies board layout and EMI/ESD considerations when used in SIP configurations, while the industrial temperature range and RoHS compliance support long‑term deployment requirements.

Request a quote or submit an inquiry for the ATSAMA5D27C-LD1G-CU to evaluate pricing and lead time for your design needs.
