D8086-2

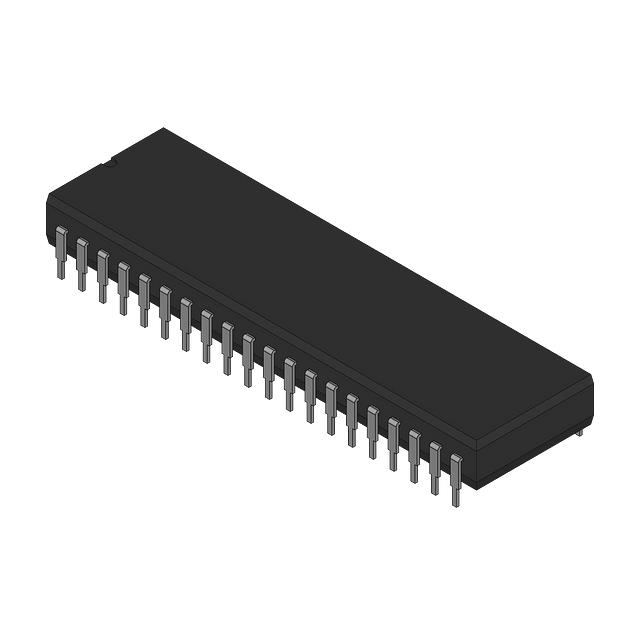

The D8086-2 is an 8086 microprocessor IC manufactured by Advanced Micro Devices, featuring a single 16-bit core running at 8 MHz. Packaged in a 40‑pin CDIP (0.600", 15.24 mm) with through‑hole mounting and commercial operating temperature, it serves embedded designs that require a classic 8086 core and robust physical packaging.

Key Features

• Core and Architecture – Single 8086 core with a 16‑bit data width, providing straightforward integration into embedded designs that specify the 8086 architecture.
• Performance – Fixed 8 MHz operating speed suitable for applications that match this clock rate.
• Power and I/O – 5 V I/O voltage level compatible with systems designed for 5 V signaling.
• Interfaces – Includes EBI/EMI additional interfaces to support external bus integration and system expansion.
• Package & Mounting – 40‑pin CDIP package (0.600", 15.24 mm) with through‑hole mounting for easy prototyping, retrofit, or use in through‑hole PCB designs.
• Grade & Temperature – Commercial grade device with an operating temperature range of 0 °C to 70 °C.
• Compliance – RoHS compliant.

Typical Applications

• Embedded Systems – Integration into embedded devices that require a single 16‑bit 8086 core at 8 MHz.
• Through‑Hole Prototyping and Retrofit – 40‑pin CDIP through‑hole package simplifies breadboarding, prototyping, and replacement in existing through‑hole PCBs.
• System Integration with External Buses – Devices that utilize EBI/EMI interfaces for external bus connections can leverage the D8086-2’s built‑in additional interfaces.
• Commercial‑Grade Electronics – Applications operating within a 0 °C to 70 °C range that require RoHS compliance and 5 V I/O levels.

Unique Advantages

• Single 16‑Bit 8086 Core: Provides the specific 8086 architecture and 16‑bit data path required by designs that call for this core.
• Through‑Hole 40‑CDIP Package: Facilitates easier handling, prototyping, and retrofit into legacy or through‑hole PCB layouts.
• 5 V I/O Voltage: Matches systems and peripherals that operate at 5 V signaling levels.
• EBI/EMI Interfaces: Built‑in additional interfaces support integration with external buses and peripheral expansion.
• Commercial Temperature Range: Rated for operation from 0 °C to 70 °C, suitable for a wide range of commercial applications.
• RoHS Compliant: Meets environmental compliance requirements for lead‑free manufacturing processes.

Why Choose D8086-2?

The D8086-2 delivers a clear specification set for embedded and through‑hole applications that require a single 16‑bit 8086 core at an 8 MHz clock rate. Its 40‑pin CDIP package with through‑hole mounting, 5 V I/O, and EBI/EMI interfaces make it well suited for designs that need easy physical integration and external bus connectivity.

As a commercial‑grade, RoHS‑compliant part from Advanced Micro Devices, the D8086-2 is a practical choice for engineers sourcing a defined 8086 microprocessor solution for embedded systems, prototyping, retrofit projects, and other applications operating within a 0 °C to 70 °C environment.
