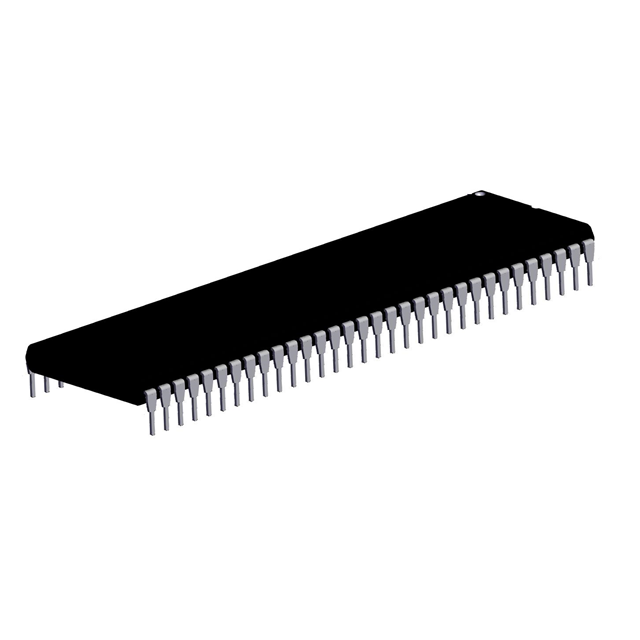

HD63A03YP

The HD63A03YP is an 8-bit microprocessor built around the 6303 core, offered in a through-hole DIP package for straightforward integration. It is targeted at consumer embedded applications that require a single-core 8-bit processor with 5 V I/O and a modest operating frequency.

Key platform attributes include a single 8-bit core, 5 V I/O compatibility, and an operating temperature range of -20 °C to 70 °C, making it suitable for a range of basic consumer electronics and control applications.

Key Features

• Core  6303 core processor, single-core 8-bit architecture for simple control and logic tasks.
• Clock Speed  Specified operating speed: 1 MHz.
• Voltage I/O  5 V I/O level compatible for legacy and common consumer interfaces.
• Package & Mounting  DIP package intended for through-hole mounting, enabling easy prototyping and replacement.
• Qualification & Compliance  Consumer-qualified device and RoHS compliant.
• Operating Temperature  Rated for -20 °C to 70 °C operation.
• Graphics Acceleration  None — designed for control and logic rather than graphics processing.

Typical Applications

• Home Appliances  Control of simple user interfaces and basic control loops in consumer appliances where an 8-bit core and 5 V I/O are appropriate.
• Consumer Electronics  Embedded control for small devices requiring a single 8-bit processor in a through-hole package.
• Educational & Prototyping  Through-hole DIP packaging makes the device suitable for learning platforms, prototypes, and repairable designs.

Unique Advantages

• Legacy-friendly I/O levels: 5 V I/O compatibility eases integration with existing consumer hardware and peripheral components.
• Through-hole DIP packaging: Simplifies assembly, prototyping, and field replacement compared with surface-mount parts.
• Simple 8-bit architecture: The single 6303 core provides deterministic, easy-to-program control for basic embedded tasks.
• RoHS compliant: Meets environmental compliance for applications requiring lead-free components.
• Consumer qualification: Intended for consumer product use cases, aligning with mainstream embedded application requirements.

Why Choose HD63A03YP?

The HD63A03YP is positioned as a straightforward, consumer-focused 8-bit microprocessor choice for designs that prioritize simple control functionality, ease of assembly, and compatibility with 5 V systems. Its DIP through-hole package and defined operating range make it a practical option for prototyping, repairable products, and legacy-compatible designs.

For designers and buyers seeking a compact, RoHS-compliant 8-bit solution with clear environmental and temperature specifications, the HD63A03YP offers predictable performance and straightforward integration within consumer embedded systems.
