GX1-233B-85-1.8

The GX1-233B-85-1.8 is an AMD Geode™ GX1 microprocessor optimized for embedded applications. It is a single-core processor running at 233 MHz with integrated display and peripheral interfaces suited for compact, low-power systems.

Targeted at embedded designs, the device combines core processing, LCD display control, USB connectivity, AC'97 audio interface and graphics acceleration in a surface-mount 352‑EBGA (35×35) package for space-constrained commercial applications.

Key Features

• Core and Performance  AMD Geode™ GX1 single-core processor clocked at 233 MHz, providing processing suitable for embedded control and UI tasks.
• Power and I/O Voltage  3.3 V I/O voltage to interface with common peripheral devices and board-level logic.
• Display and Graphics  Integrated LCD display controller and hardware graphics acceleration to support graphical user interfaces and display-driven applications.
• Peripheral Interfaces  Two USB ports and AC'97 audio interface are provided for peripheral connectivity and audio functionality.

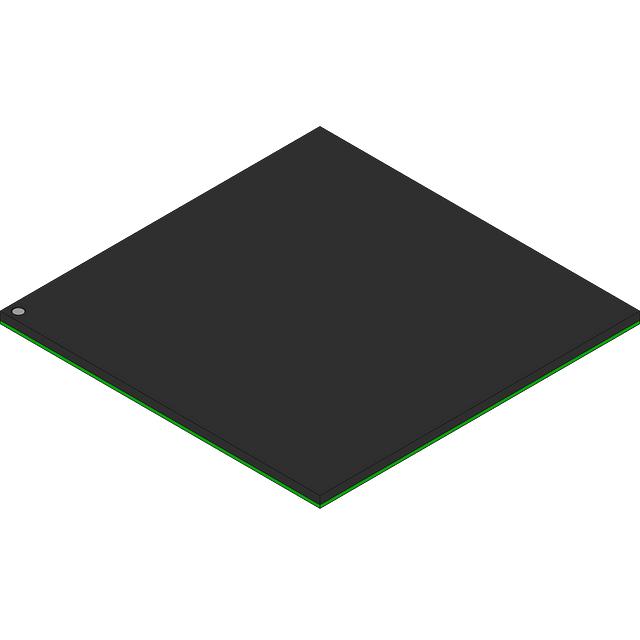

• Package and Mounting  352‑EBGA (35×35) exposed pad package designed for surface‑mount assembly, enabling compact PCB layouts.
• Operating Range and Grade  Commercial grade with an operating temperature range of 0 °C to 85 °C for standard embedded environments.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Embedded Control Systems  Use the single-core 233 MHz processor for control and supervisory tasks in compact embedded designs.
• Human-Machine Interfaces (HMI)  Integrated LCD controller and graphics acceleration support graphical displays and operator interfaces.
• Multimedia-enabled Devices  AC'97 audio interface plus graphics acceleration and USB connectivity support audio and peripheral integration.
• Space-constrained Boards  The 352‑EBGA (35×35) package and surface-mount mounting suit compact PCB real estate requirements.

Unique Advantages

• Integrated Display and Graphics:  Built-in LCD controller and graphics acceleration reduce external video components and simplify display subsystem design.
• Multi-interface Connectivity:  Two USB ports and AC'97 support common peripheral and audio connections without extensive external logic.
• Compact BGA Package:  352‑EBGA (35×35) with exposed pad enables dense, reliable surface-mount assemblies for small form-factor products.
• Commercial Temperature Range:  Rated 0 °C to 85 °C for deployment in standard commercial embedded environments.
• RoHS Compliant:  Meets environmental compliance requirements for modern electronics manufacturing.

Why Choose GX1-233B-85-1.8?

The GX1-233B-85-1.8 positions itself as a compact, integrated microprocessor option for embedded applications that require display capability, peripheral connectivity and modest processing throughput. With the AMD Geode™ GX1 core and dedicated graphics support, it balances system integration and board-level simplicity.

This part is appropriate for designers seeking a commercial-grade embedded MPU in a small 352‑EBGA package, where integrated LCD, USB and audio interfaces help reduce component count and simplify BOMs while maintaining clear operational limits defined by the 0 °C to 85 °C range.

Request a quote or submit an inquiry to learn about availability, pricing, and lead times for the GX1-233B-85-1.8.
