KMPC8314ECVRAGDA

The KMPC8314ECVRAGDA is an NXP Semiconductors PowerPC-based microprocessor (MPC8314 series) featuring a single PowerPC e300c3 core running at 400 MHz. It is a highly integrated, industrial-qualified MPU targeted at storage, networking and industrial applications that require onboard security, robust I/O and DDR/DDR2 memory support.

Designed for embedded designs that need deterministic performance and extensive peripheral integration, the device combines a PowerQUICC II Pro family architecture with multi‑port Ethernet, USB 2.0 connectivity, security acceleration and memory controller support to simplify system design and reduce external component count.

Key Features

• Core  PowerPC e300c3 32‑bit core at 400 MHz; includes on‑core L1 instruction resources as documented in the device technical data.
• Memory  Integrated controllers for DDR and DDR2 SDRAM, enabling flexible system memory configurations.
• Security  On‑chip security engine (SEC 3.3) plus cryptography and a hardware random number generator for accelerated secure processing.
• Ethernet  Two three‑speed Ethernet MACs supporting 10/100/1000 Mbps operation, suitable for multi‑port network applications.
• USB  USB 2.0 with integrated PHY (single port) for host or device connectivity.
• Peripheral Interfaces  Rich peripheral set as documented in the hardware specification including PCI, PCI Express, high‑speed serial interfaces (HSSI), I2C, SPI, GPIO, timers and serial ports.

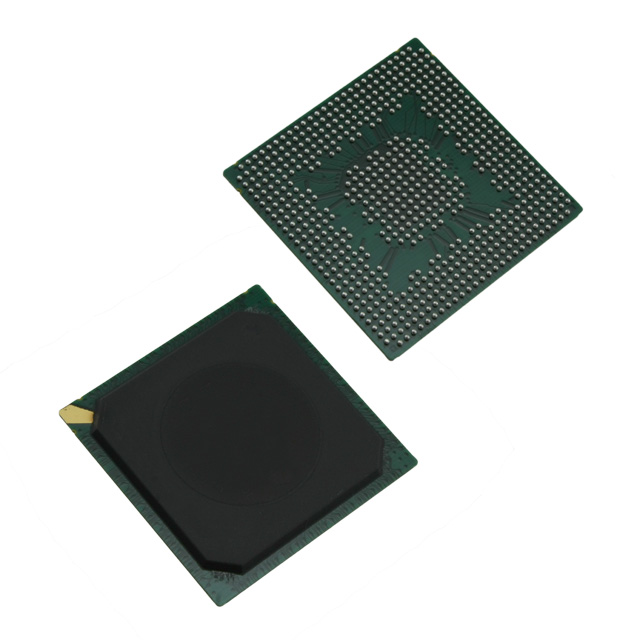

• Package & Mounting  620‑ball HBGA 29 × 29 mm package, surface‑mount in tray format for production assembly.
• Operating Range  Industrial temperature qualification with an operating range from −40 °C to 105 °C.
• System Integration  No graphics acceleration – optimized for control, communications and embedded I/O tasks rather than display processing.

Typical Applications

• Network Appliances  Dual three‑speed Ethernet and rich I/O make the device well suited for routers, gateways and wireless access point controllers.
• Storage Systems  Memory controller support for DDR/DDR2 and integrated processing provide a compact host processor option for NAS and storage appliances.
• Industrial Controls  Industrial temperature qualification and broad peripheral set support PLCs, industrial gateways and embedded controllers.
• VoIP and Multimedia Gateways  On‑chip security acceleration and per‑port networking support secure voice and multimedia gateway functions.
• Set‑Top and Consumer Gateways  Integration of USB, Ethernet and serial interfaces supports set‑top boxes and home gateway devices (consumer segments documented in the device family description).

Unique Advantages

• Highly integrated I/O: Dual 10/100/1000 Ethernet MACs, USB 2.0 + PHY and multiple high‑speed interfaces reduce external components and board complexity.
• Built‑in security acceleration: SEC 3.3 security engine, cryptography and hardware RNG accelerate secure communications and reduce CPU overhead.
• Memory flexibility: Support for DDR and DDR2 SDRAM controllers allows designers to select cost and performance tradeoffs that match system requirements.
• Industrial reliability: Qualification for −40 °C to 105 °C operation supports deployment in industrial environments.
• Compact, production‑ready package: 620‑HBGA (29×29) surface‑mount package simplifies assembly for volume manufacturing.
• Comprehensive documentation: Detailed hardware specification and datasheet information are available to support system design and integration.

Why Choose KMPC8314ECVRAGDA?

The KMPC8314ECVRAGDA combines a PowerPC e300c3 core with integrated memory controllers, multi‑port Ethernet, USB connectivity and a dedicated security engine to deliver a balanced mix of compute, I/O and security for embedded networking, storage and industrial applications. Its industrial temperature rating and HBGA package support deployment in robust, production environments.

This MPU is suited for developers and procurement teams seeking a single‑chip solution that shortens board design cycles, reduces BOM count and provides the peripheral integration required for mid‑to‑high‑performance embedded systems. Detailed technical documentation is provided to aid integration and system bring‑up.

Request a quote or submit your requirements to receive pricing and availability for KMPC8314ECVRAGDA and to discuss how this MPU can fit your next embedded design.
