KMPC8358VRAGDGA

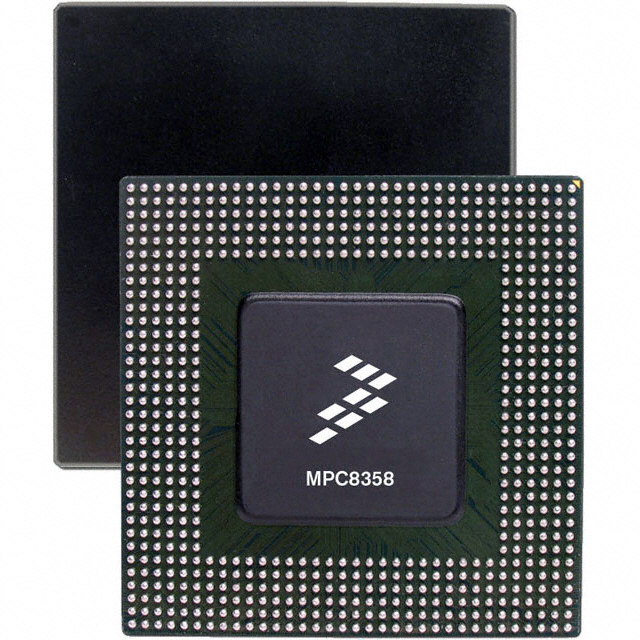

The KMPC8358VRAGDGA is a PowerPC e300-based microprocessor from the MPC8358 series by NXP Semiconductors. It is a single-core, 32‑bit communications processor running at 400 MHz and implemented in a 668‑PBGA (29×29) package.

Designed as a PowerQUICC II Pro-class device, it targets networking, wireless infrastructure, and telecommunications equipment where integrated communications functionality and robust peripheral sets are required. Typical uses include control-plane and data-plane roles in networking systems.

Key Features

• Core and Performance  Single PowerPC e300 core, 32‑bit architecture running at 400 MHz for control and communications processing.
• Communications Co‑processing  Integrated communications co‑processors including the QUICC Engine to accelerate packet and protocol handling.
• Memory Support  On‑chip controllers for DDR and DDR2 SDRAM to support high‑bandwidth system memory configurations.
• Ethernet  One integrated three‑speed Ethernet controller supporting 10/100/1000 Mbps operation for network connectivity.
• Peripheral Interfaces  Includes USB 1.x support and a broad peripheral set referenced in the device documentation (PCI, I2C, SPI, JTAG, DUART, GPIO, timers, and more).
• Security  Hardware security features include cryptography capabilities and an integrated random number generator.
• Package and Mounting  Supplied in a 668‑PBGA‑PGE (29×29) tray package for surface‑mount assembly.
• Operating Range  Rated for operation from 0 °C to 105 °C.
• Qualification  Consumer qualification level as indicated in the product specifications.

Typical Applications

• Network Infrastructure  Used in DSLAMs, routers and media gateways to provide integrated control and data‑plane processing with built‑in Ethernet support.
• Wireless Infrastructure  Suitable for network interface cards and 3G base station (Node B) modules that require communications acceleration and robust peripheral integration.
• Telecommunications Equipment  Employed in media gateways and high‑end integrated access devices (IADs) where protocol interworking and interface density are needed.

Unique Advantages

• Highly integrated communications processor: The PowerQUICC II Pro architecture consolidates processing and communications subsystems to reduce external components and simplify board design.
• Single 400 MHz PowerPC e300 core: Provides deterministic 32‑bit control processing suited to embedded networking tasks.
• Broad peripheral set documented in silicon specifications: On‑chip controllers and interfaces (Ethernet, USB, PCI, I2C, SPI, JTAG and more) support a wide range of system I/O requirements.
• Memory flexibility: DDR and DDR2 SDRAM controllers enable scalable memory configurations for varying throughput needs.
• Hardware security primitives: Built‑in cryptography and a random number generator help implement secure functions directly in hardware.
• Robust thermal and packaging: 668‑PBGA (29×29) package rated for 0 °C to 105 °C operation supports deployment in equipment-class environments.

Why Choose KMPC8358VRAGDGA?

The KMPC8358VRAGDGA combines a PowerPC e300 core with a communications‑focused feature set from the MPC8358 PowerQUICC II Pro family, placing compute, protocol acceleration and a wide range of interfaces into a single device. This balance of performance and integration is aimed at designers of networking, wireless infrastructure, and telecommunications equipment who require compact, capable processors for both control and data‑plane tasks.

With documented support for DDR/DDR2 memory, 10/100/1000 Mbps Ethernet, hardware security features, and extensive peripheral blocks described in the device documentation, the KMPC8358VRAGDGA is positioned for use in systems that demand integrated communications functionality and proven silicon specifications from NXP Semiconductors.

Request a quote or submit an inquiry for KMPC8358VRAGDGA to evaluate it for your embedded communications design needs.
