MPC8248CZQMIBA-NXP

The MPC8248CZQMIBA-NXP is a PowerPC G2_LE microprocessor from NXP Semiconductors' MPC8248 series, delivering a single 32-bit core running at 266 MHz in a 516-PBGA (27×27) package. Designed for embedded applications, it integrates communications and security co-processors alongside memory controllers and standard I/O to address networking and industrial control use cases.

Key value comes from on-chip communications interfaces, hardware security features, and an industrial operating temperature range, making the device suitable for systems that require integrated networking, secure processing, and extended-temperature operation.

Key Features

• Core — PowerPC G2_LE single 32-bit core operating at 266 MHz for deterministic embedded processing.
• Memory Controllers — Integrated DRAM and SDRAM controllers to support external memory configurations required by embedded systems.
• Communications Co-processors — On-chip RISC CPM and communications DSP functionality to offload protocol and data-path tasks.
• Ethernet and USB — Dual 10/100 Mbps Ethernet ports and one USB 2.0 interface for networked and peripheral connectivity.
• Security — Built-in cryptography and a hardware random number generator to support secure communications and data protection.
• Additional Interfaces — HDLC/SDLC support for legacy and framed-data link protocols.
• Power and I/O — 3.3 V I/O signaling compatible with common embedded logic levels.

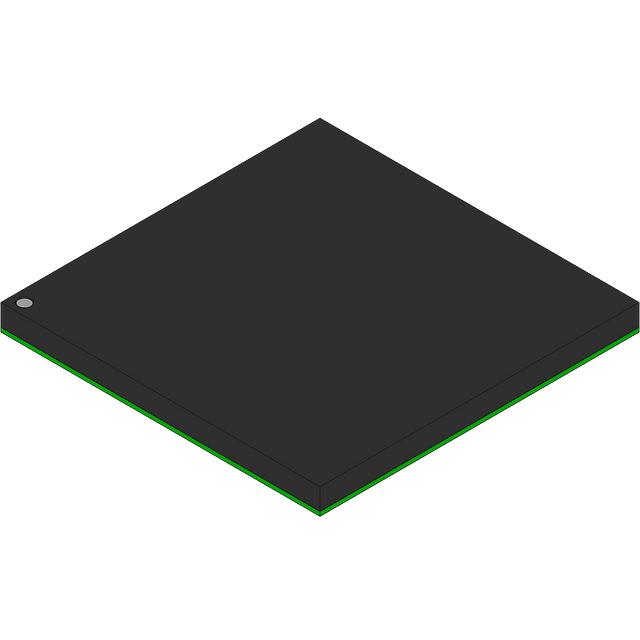

• Package and Temperature — 516-PBGA (27×27) package, surface-mount, qualified for industrial use with an operating range of −40°C to 105°C.

Typical Applications

• Industrial Networking — Dual 10/100 Mbps Ethernet and industrial temperature qualification make this device suitable for networked controllers and field gateways.
• Secure Communications Appliances — On-chip cryptography and a random number generator support secure data links and encrypted communications.
• Embedded Protocol Offload — RISC CPM and communications DSP capabilities enable protocol handling and data-path acceleration in embedded routers and switches.
• Peripheral-Connected Systems — USB 2.0 and HDLC/SDLC interfaces allow integration with a range of peripherals and framed-data devices.

Unique Advantages

• Integrated Communications and Security: Combines Ethernet, USB, HDLC/SDLC, communications co-processors, cryptography, and RNG on a single die to reduce system complexity.
• Industrial Temperature Rating: −40°C to 105°C operating range supports deployment in harsh or temperature-variable environments.
• Memory Subsystem Support: On-chip DRAM and SDRAM controllers simplify memory interfacing for higher system throughput.
• Compact, Surface-Mount Package: 516-PBGA (27×27) package provides a high-pin-count solution in a compact footprint for space-constrained boards.
• Single-Supply I/O: 3.3 V I/O compatibility eases integration with common embedded peripherals and logic families.

Why Choose MPC8248CZQMIBA-NXP?

The MPC8248CZQMIBA-NXP positions itself as a tightly integrated embedded processor targeted at networking and industrial control applications that require onboard communications, security, and memory interfacing. Its PowerPC G2_LE core running at 266 MHz, combined with dual Ethernet, USB 2.0, communications co-processors, and hardware security primitives, provides a balanced mix of control performance and system integration.

Engineers designing industrial or networked embedded systems will find the device well suited to applications needing secure connectivity and reliable operation across an extended temperature range. As part of the NXP MPC8248 series, it offers a focused feature set for reducing external component count while meeting common embedded networking and security requirements.

Request a quote or submit an inquiry to receive pricing and availability for the MPC8248CZQMIBA-NXP and to discuss quantity, lead time, and technical requirements for your project.
