MPC8314VRAGDA

The MPC8314VRAGDA is a single‑core, 32‑bit PowerPC e300c3 microprocessor running at 400 MHz, supplied by NXP Semiconductors. It is a cost‑effective, low‑power, highly integrated host processor suited for storage, consumer and industrial embedded applications.

Designed for roles such as main CPUs and I/O processors in devices including NAS, VoIP router/gateways, intelligent WLAN access points, set‑top boxes and industrial controllers, the MPC8314VRAGDA combines processing performance with integrated I/O and memory interfaces to simplify system design.

Key Features

• Core and Performance  PowerPC e300c3 core, single 32‑bit core clocked at 400 MHz for embedded control and I/O processing tasks.
• Memory Interfaces  Integrated support for DDR and DDR2 memory controllers to enable flexible system memory configurations.
• Networking  Dual three‑speed Ethernet interfaces (10/100/1000 Mbps) for wired networking and high throughput connectivity.
• USB  Integrated USB 2.0 controller with PHY (1) for host/device connectivity and peripheral interfacing.
• Security Features  Product specifications list cryptography and a random number generator to support security functions in embedded applications.
• Peripherals and Serial  Additional interfaces include DUART for serial communications and support for a range of peripheral buses as documented in the product datasheet.

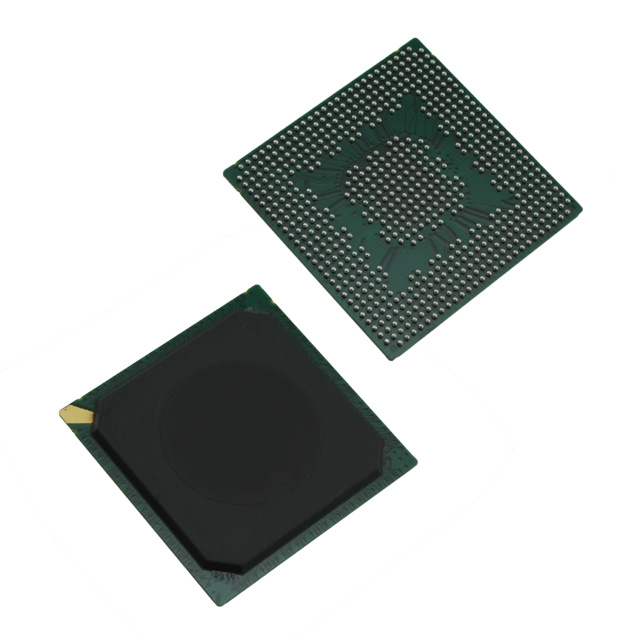

• Package and Mounting  620‑HBGA (29×29) supplier package with exposed pad; surface‑mount device suitable for compact board designs.
• Operating Range and Compliance  Rated for operation from 0 °C to 105 °C and listed as RoHS compliant; device qualification is Consumer.

Typical Applications

• Network Attached Storage (NAS)  Use as a main CPU or I/O processor to manage storage interfaces and network traffic in compact NAS appliances.
• Voice over IP (VoIP) Routers/Gateways  Handles protocol processing and I/O for VoIP gateways and routers requiring integrated Ethernet and serial interfaces.
• Wireless LAN / Access Points  Embedded processing for intelligent WLAN access points and wireless infrastructure with dual Gigabit Ethernet ports.
• Set‑Top Boxes and Consumer Devices  Acts as a cost‑effective host processor for consumer electronics that require USB, memory controllers and network connectivity.
• Industrial Controllers  Suitable for industrial control applications that operate within the specified temperature range and need integrated connectivity.

Unique Advantages

• Balanced performance and efficiency: A 400 MHz PowerPC e300c3 core provides deterministic embedded processing while maintaining low power characteristics identified in product documentation.
• Integrated high‑speed networking: Dual 10/100/1000 Mbps Ethernet interfaces reduce external PHY and switch requirements, simplifying board design for networked products.
• Flexible memory support: On‑chip DDR/DDR2 controllers allow designers to match system memory to performance and cost targets.
• Compact package for dense designs: 620‑HBGA (29×29) exposed‑pad package enables high pin‑count routing in space‑constrained applications.
• Security primitives available: Cryptography and random number generation capabilities, as listed in the product specifications, support embedded security use cases.
• Regulatory and assembly friendly: RoHS compliance and surface‑mount package streamline manufacturing and environmental compliance considerations.

Why Choose MPC8314VRAGDA?

The MPC8314VRAGDA positions itself as a highly integrated, single‑core PowerPC solution that balances processing capability with on‑chip interfaces for networking, USB and DDR memory. Its design targets embedded developers who need a compact, network‑oriented host processor for consumer, storage and industrial systems.

With a clear set of on‑chip peripherals, a compact HBGA package and an operational range up to 105 °C, this part supports designs focused on reducing external component count while meeting connectivity and performance requirements documented for the MPC8314 family.

Request a quote or submit a purchase inquiry to receive pricing and availability for the MPC8314VRAGDA.
