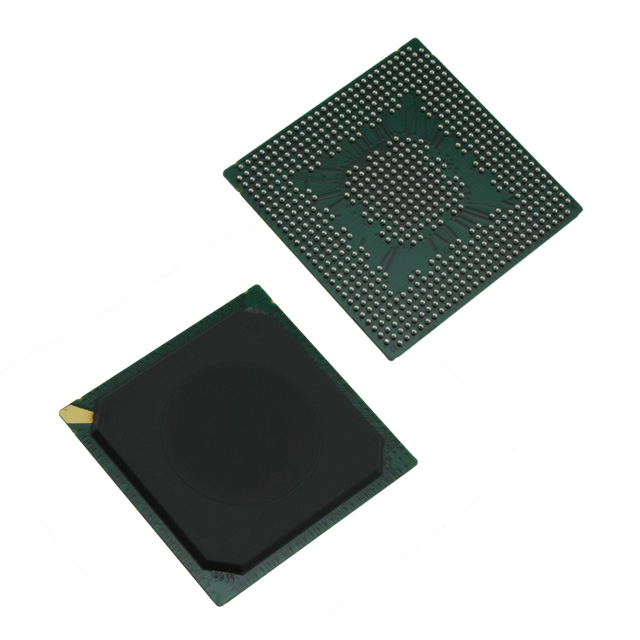

MPC8315EVRADDA

The MPC8315EVRADDA is a single‑core PowerPC e300c3 32‑bit microprocessor running at 266 MHz, designed for embedded host and I/O processing. It combines a compact 620‑ball HBGA package with integrated high‑speed interfaces and memory controllers to address storage, networking and consumer/industrial embedded applications.

Engineered for integration and system-level functionality, the device provides on‑chip controllers for DDR/DDR2 memory, two 10/100/1000 Mbps Ethernet ports, dual SATA 3 Gbps channels, USB 2.0 with PHY and hardware security features, enabling compact, cost‑effective designs that require balanced CPU performance and rich peripheral support.

Key Features

• Core & Performance — PowerPC e300c3 single‑core, 32‑bit CPU operating at 266 MHz for deterministic embedded processing.
• Memory Subsystem — Integrated DDR and DDR2 memory controllers to support system memory configurations common in storage and networking designs.
• High‑Speed Storage Interfaces — Two Serial ATA (SATA) 3 Gbps channels for direct connection to storage devices and RAID/array controllers.
• Networking — Two 10/100/1000 Mbps Ethernet interfaces to support multi‑port networking and gateway applications.
• USB Connectivity — USB 2.0 with integrated PHY for host or device connectivity and peripheral interfacing.
• Security Engine — On‑chip security co‑processor (SEC 3.3) with cryptography functions and a hardware random number generator for secure operations.
• Additional Interfaces — DUART and a broad set of peripheral interfaces for control, management and serial communications.
• Package & Mounting — 620‑HBGA (29×29) supplier package with exposed pad; surface‑mount mounting for compact board layouts.
• Operating Range & Compliance — Rated for 0 °C to 105 °C and RoHS compliant, suitable for consumer and industrial embedded designs.

Typical Applications

• Network Storage (NAS): Use the integrated DDR/DDR2 controllers and dual SATA 3 Gbps interfaces for compact NAS controllers and storage gateways.
• Bridging & Gateway Appliances: Dual gigabit Ethernet and USB 2.0 enable router/gateway, VoIP and wireless access point designs requiring multiple high‑speed I/O.
• Consumer & Set‑Top Devices: The 266 MHz e300c3 core with extensive peripheral integration supports system control and I/O tasks in set‑top boxes and multimedia appliances.
• Industrial Controllers: Deterministic single‑core processing, DUART and robust IO make the part suitable for embedded control and communications in industrial equipment.

Unique Advantages

• Integrated I/O Suite: On‑chip Ethernet, SATA, USB and serial interfaces reduce external component count and simplify board design.
• Security‑Ready Hardware: Built‑in SEC 3.3 cryptography engine and hardware RNG provide a foundation for secure data and communications without adding discrete security ICs.
• Memory Flexibility: Support for DDR and DDR2 memory lets designers choose memory technology that matches performance and cost targets.
• Compact Thermal Package: 620‑HBGA with exposed pad supports high‑density layouts while providing thermal path for board‑level cooling solutions.
• Regulatory & Environmental Compliance: RoHS compliance helps meet environmental and supply requirements for consumer and commercial products.

Why Choose MPC8315EVRADDA?

The MPC8315EVRADDA offers a balanced combination of a PowerPC e300c3 266 MHz processing core and a broad set of integrated peripherals tailored for embedded storage, networking and consumer applications. Its integration of memory controllers, dual gigabit Ethernet, dual SATA ports, USB 2.0 and hardware security enables compact, BOM‑efficient system designs.

This device is well suited for engineers building space‑efficient systems that require robust I/O, hardware security primitives and straightforward memory options. With RoHS compliance and a consumer qualification level, it supports mainstream embedded product lifecycles while simplifying board design and system integration.

Request a quote or contact our sales team to discuss availability, pricing and how MPC8315EVRADDA fits your next embedded design.
