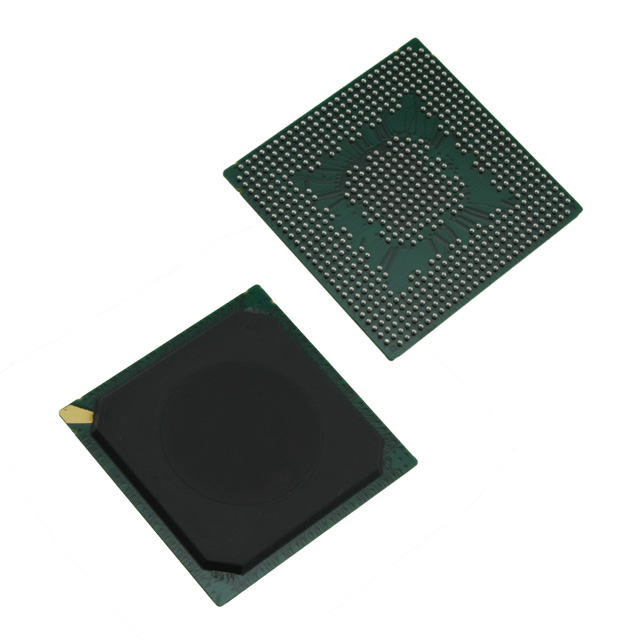

MPC8347VRAGDB

The MPC8347VRAGDB is a single‑core PowerPC e300 microprocessor operating at 400 MHz, packaged in a 620‑HBGA (29×29) with exposed pad. Designed for embedded systems, it delivers integrated system logic and interfaces targeted at networking, storage and general‑purpose embedded applications.

With on‑chip DDR memory controller support, dual Gigabit Ethernet ports, dual USB 2.0 + PHY, and built‑in security accelerators, this device provides a balance of compute, connectivity and security for compact, surface‑mount designs.

Key Features

• Core Single PowerPC e300 core, 32‑bit, running at 400 MHz for deterministic embedded processing.
• Memory Integrated DDR memory controller for system memory interfacing.
• Networking Two 10/100/1000 Mbps Ethernet ports to support multi‑port networking and communication tasks.
• USB Two USB 2.0 controllers with integrated PHYs for host/peripheral connectivity.
• Security On‑chip security engine (SEC) with cryptography and a random number generator to support secure communications and data protection.
• Interfaces DUART and other peripheral interfaces for serial communications and control.
• Package and Mounting 620‑HBGA (29×29) exposed pad package, surface mount mounting type suitable for high‑density board designs.
• Operating Range Qualified for consumer applications with an operating temperature range of 0 °C to 105 °C.
• Compliance RoHS compliant for environmentally conscious designs.

Typical Applications

• Networking Equipment Used in routers, switches or embedded gateways where dual Gigabit Ethernet and integrated processing are required.
• Storage Controllers Suitable for embedded storage and NAS controllers that need DDR memory support and secure data handling.
• Industrial Embedded Systems Fits general‑purpose embedded applications requiring reliable single‑core processing and a range of peripheral interfaces.
• Communications Devices Applies to products that require USB 2.0 connectivity and serial control through DUART.

Unique Advantages

• Integrated Networking and Connectivity: Dual Gigabit Ethernet and dual USB 2.0 + PHY reduce external component count for streamlined board design.
• Security Built In: On‑chip SEC engine, cryptography and RNG help simplify implementation of secure communications and data protection.
• Compact High‑Density Package: 620‑HBGA (29×29) exposed pad enables compact surface‑mount layouts while providing thermal interface for heat dissipation.
• Documented Family Architecture: Part of the MPC83xx PowerQUICC II Pro family with available hardware specifications and reference documentation to support system development.
• RoHS Compliance: Environmentally compliant construction for regulated markets.

Why Choose MPC8347VRAGDB?

The MPC8347VRAGDB positions itself as a balanced embedded host processor combining a 400 MHz PowerPC e300 core with integrated networking, memory controller support and security accelerators. It is suited for designs that require a compact, surface‑mount processor package with built‑in Ethernet, USB and secure processing capabilities.

Engineers and procurement teams can rely on the documented MPC83xx family hardware specifications to streamline design and validation, while the device’s integration reduces board complexity and BOM count for medium‑to‑high volume embedded applications.

Request a quote or submit a purchase inquiry to receive pricing, lead‑time and availability information for MPC8347VRAGDB.
