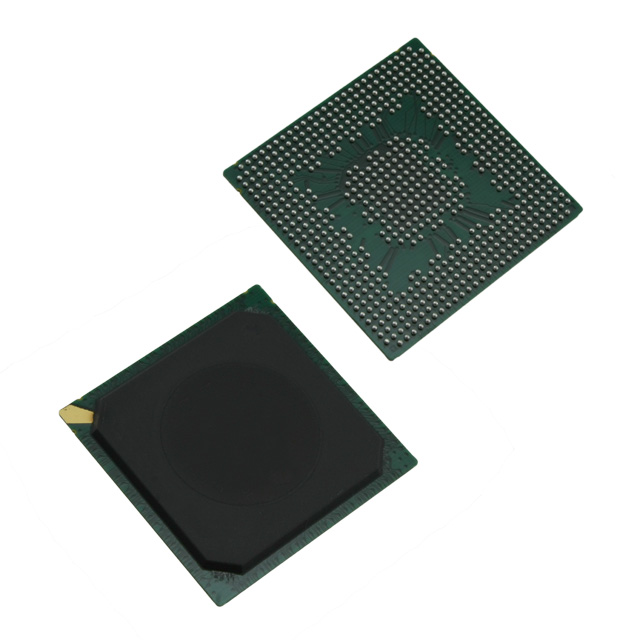

MPC8347ZQADDB

The MPC8347ZQADDB is a single‑core PowerPC e300 microprocessor operating at 266 MHz, designed for embedded applications requiring integrated networking, security and system logic. It is part of the MPC8347 family of PowerQUICC II Pro integrated host processors and targets consumer‑grade embedded use cases such as networking and storage control.

With on‑chip DDR memory controller, dual Gigabit Ethernet, dual USB 2.0 with PHY and dedicated security support, the MPC8347ZQADDB delivers a compact, well‑documented solution for embedded system designers focused on integration and predictable operating ranges.

Key Features

• Core PowerPC e300 32‑bit processor core, single core operating at 266 MHz.
• Memory Integrated DDR SDRAM controller to support system memory requirements.
• Networking & I/O Two 10/100/1000 Mbps Ethernet interfaces and two USB 2.0 ports with PHY for robust connectivity options.
• Security On‑chip security co‑processor (SEC) with cryptography support and a hardware random number generator for secure processing tasks.
• Peripheral Interfaces Integrated DUART and standard peripheral interfaces suitable for host and control functions.
• Package & Mounting 620‑HBGA (29×29) supplier device package; package case listed as 620‑BBGA with exposed pad. Surface mount device suitable for compact board designs.
• Operating Range & Qualification Consumer qualification and a specified operating temperature range of 0 °C to 105 °C. RoHS compliant.
• Documentation & Family Member of the MPC8347E PowerQUICC II Pro family with corresponding hardware specifications and system‑level documentation.

Typical Applications

• Consumer Network Devices — Dual Gigabit Ethernet and USB 2.0 interfaces enable router, gateway and home network applications.
• Storage Controllers — Integrated DDR support and host processor features make it suitable for embedded storage-management tasks.
• General Embedded Hosts — Single‑core PowerPC e300 processor with system logic for control and orchestration in embedded consumer systems.

Unique Advantages

• Integrated Connectivity: Dual Gigabit Ethernet and dual USB 2.0 + PHY reduce external interface components and simplify board design.
• Built‑in Security Engine: Cryptography support and a hardware random number generator provide on‑chip security capabilities for secure data handling.
• Memory Subsystem Support: On‑chip DDR controller accelerates system integration and memory interfacing for embedded applications.
• Compact Packaging: 620‑HBGA (29×29) surface‑mount package with exposed pad supports dense, space‑constrained designs.
• Documented Family Line: Part of the MPC8347E PowerQUICC II Pro family with published hardware specifications to assist system design and validation.
• Regulatory Compliance: RoHS compliant for designs requiring lead‑free components.

Why Choose MPC8347ZQADDB?

The MPC8347ZQADDB combines a PowerPC e300 core with integrated Ethernet, USB, DDR memory support and hardware security features to provide a balanced platform for consumer embedded networking and storage applications. Its documented lineage within the MPC8347E PowerQUICC II Pro family helps designers align system requirements with available hardware specifications.

This device is suited to teams seeking a compact, RoHS‑compliant, surface‑mount processor solution that integrates key interfaces and security capabilities while operating across a 0 °C to 105 °C range. It is an option for designs where on‑chip integration and clear hardware documentation are priorities.

Request a quote or submit an RFQ to obtain pricing and lead‑time information for the MPC8347ZQADDB.
