OMAP3530ECUS

The OMAP3530ECUS is an ARM® Cortex®-A8 based microprocessor IC featuring a single 32-bit core running at 600 MHz in a 423-FCBGA (16×16) package. It integrates signal-processing and multimedia co-processors along with display and USB interfaces, making it suited to embedded commercial applications that require on-chip multimedia and interface capabilities.

Designed for commercial-grade embedded systems, the device combines compute performance with integrated peripherals such as an LCD display controller, USB ports, LPDDR memory controller support, and graphics acceleration to simplify system design and integration.

Key Features

• Core — ARM® Cortex®-A8 single 32-bit core at 600 MHz for general-purpose processing tasks.
• Co‑Processors — Integrated signal-processing and multimedia engines including C64x+ and NEON™ SIMD to accelerate media and DSP workloads.
• Memory Support — LPDDR memory controller support for system memory interfacing.
• Display and Graphics — On-chip LCD display interface and graphics acceleration to support embedded user interfaces and visual content.
• USB and Additional Interfaces — Multiple USB ports (three USB 1.x and one USB 2.0) plus HDQ/1‑Wire for peripheral and sensor connectivity.

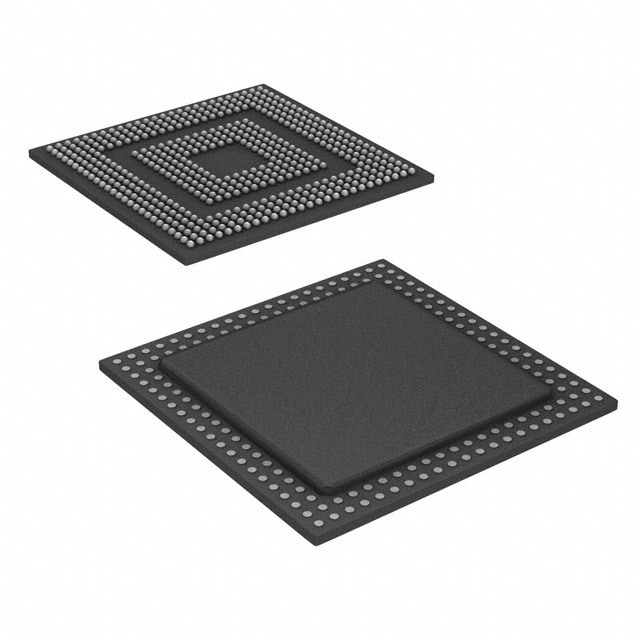

• Package and Mounting — 423-LFBGA / 423-FCBGA surface-mount package (16×16) for compact board-level integration.
• Operating Range and Grade — Commercial grade with operating temperature range of 0 °C to 90 °C and RoHS compliance for regulatory alignment.

Typical Applications

• Embedded Multimedia Devices — Use the integrated multimedia co-processors and graphics acceleration to handle video and audio processing tasks.
• Human‑Machine Interfaces (HMI) — The LCD controller and graphics support enable implementation of responsive user interfaces for commercial products.
• Connected Peripherals — Multiple USB ports and HDQ/1‑Wire interface facilitate connectivity to cameras, storage, sensors, and other peripherals.

Unique Advantages

• Integrated Multimedia and DSP Engines — On-chip C64x+ and NEON™ SIMD co-processors reduce the need for external accelerators for media and signal-processing functions.
• Display-Ready — Built-in LCD controller and graphics acceleration simplify development of embedded displays and graphical interfaces.
• Flexible Connectivity — Multiple USB ports and HDQ/1‑Wire support a variety of peripheral and sensor connections without extensive external bridging.
• Compact BGA Package — 423-FCBGA (16×16) surface-mount package offers a compact footprint for space-constrained board designs.
• Commercial Temperature and RoHS Compliance — 0 °C to 90 °C operating range and RoHS compliance align with standard commercial embedded product requirements.

Why Choose OMAP3530ECUS?

The OMAP3530ECUS provides a balanced combination of compute performance and integrated multimedia and interface features in a compact 423-FCBGA package. Its ARM® Cortex®-A8 core at 600 MHz coupled with dedicated DSP and NEON™ SIMD engines makes it suitable for commercial embedded designs that need on-chip media acceleration and display support.

This device is appropriate for engineers building commercial embedded systems that require integrated display, USB connectivity, and LPDDR memory support, while maintaining a compact board footprint and RoHS compliance.

Request a quote or submit a purchase inquiry for the OMAP3530ECUS to evaluate availability and pricing for your design requirements.
