P1010NXN5HFB

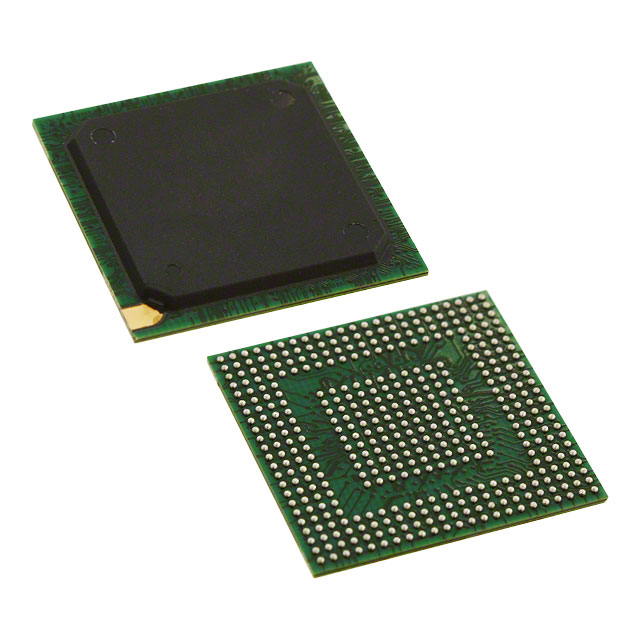

The P1010NXN5HFB is an NXP QorIQ P1 series microprocessor— a single-core PowerPC e500v2 32-bit CPU running at 1.0 GHz in a 425-TEPBGA (19×19) package. It targets cost-sensitive networking, storage and industrial applications by combining a low-power 45 nm implementation with extensive peripheral integration and a trusted security platform.

Designed for embedded networking and control, the device delivers integrated memory controllers, multiple Gigabit Ethernet ports, SATA connectivity and a dedicated security engine to address secure boot, cryptography and random number generation needs in industrial temperature environments.

Key Features

• Core & Performance  Single PowerPC e500v2 core at 1 GHz providing 32-bit processing for control and networking tasks.
• Memory Support  Integrated controllers for DDR3 and DDR3L memory to support system memory requirements.
• Networking Interfaces  Three 10/100/1000 Mbps Ethernet ports to support multi-port networking and switch/controller functions.
• Storage & USB  Two SATA 3 Gbps ports for direct-attached storage and one USB 2.0 with PHY for peripheral connectivity.
• Security & Cryptography  Boot Security, Cryptography, Random Number Generator and Secure Fusebox are included; the on-chip Security Engine (SEC 4.4) accelerates IPsec, SSL/TLS and related cryptographic operations and supports secure boot and key storage.
• Peripheral Interfaces  Additional interfaces include CAN plus SPI, GPIO and serial interfaces suitable for control and management tasks.
• Package & Mounting  Available in a 425-FBGA supplier package (425-TEPBGA I, 19×19) for surface-mount assembly.
• Operating Range & Qualification  Industrial qualification with an operating temperature range of −40°C to 105°C and RoHS compliance for broad deployment in industrial environments.

Typical Applications

• Wireless LAN Access Points  Use the integrated Ethernet and security engine to handle network data paths and authenticated connections for 802.11 access point controllers.
• SOHO/SMB Routers  Single-core processing with multiple Gigabit Ethernet ports and hardware security accelerators enables routing, firewall and VPN tasks in small business gateways.
• Ethernet Switch Controllers  Multi-port GigE support and peripheral interfaces make the device suitable as a controller for managed switches and network appliances.
• Network Attached Storage (NAS)  Dual SATA 3 Gbps ports plus an XOR engine for parity checking support RAID-style storage and file-serving applications.
• Industrial Control & Factory Automation  Industrial temperature qualification and CAN support enable integration into controllers and automation equipment requiring robust I/O and secure operation.

Unique Advantages

• Highly integrated networking and storage interfaces: Multiple Gigabit Ethernet ports and dual SATA ports reduce external components and simplify board design for networking and NAS products.
• Hardware security and trusted boot: Built-in Boot Security, Secure Fusebox and the SEC 4.4 security engine provide authenticated boot and accelerated cryptographic processing to protect firmware and data.
• Storage-oriented features: The security engine’s XOR capability and dual SATA interfaces enable efficient parity and RAID support for storage appliances.
• Industrial-ready thermal range: Rated for −40°C to 105°C and industrial qualification, suitable for harsh-environment deployments.
• Compact surface-mount package: 425-TEPBGA (19×19) packaging delivers a compact footprint for space-constrained embedded boards.
• Low-power single-core solution: 45 nm low-power implementation provides a balance of performance and energy efficiency for cost-sensitive embedded designs.

Why Choose P1010NXN5HFB?

The P1010NXN5HFB delivers a focused combination of single-core PowerPC e500v2 performance, broad I/O integration and hardware security features aimed at networking, storage and industrial control designs. Its industrial temperature rating and RoHS compliance make it suitable for long-term deployments in demanding environments.

This part is appropriate for engineers and system designers seeking a compact, secure and integrated processor solution from the QorIQ P1 family backed by NXP Semiconductors, especially where secure boot, cryptographic acceleration and multi-port networking are required.

Request a quote or submit your requirements to receive pricing and availability for the P1010NXN5HFB.
