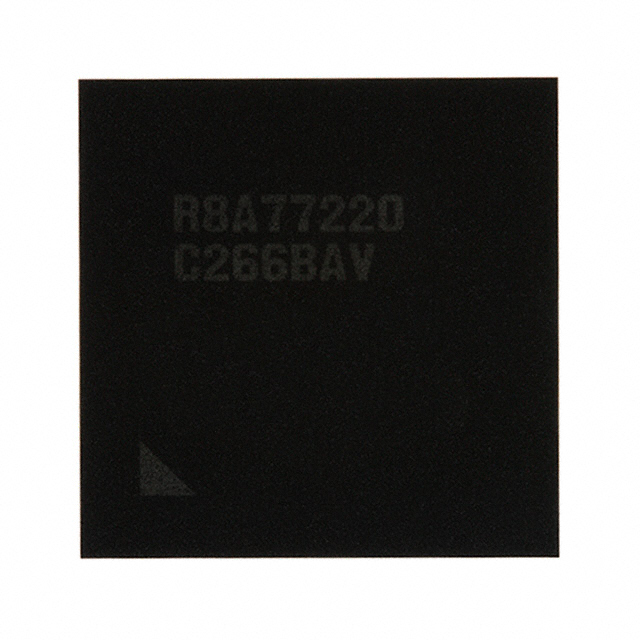

R8A77220AC266BAV

The R8A77220AC266BAV is a SuperH® SH7780 microprocessor IC featuring a single SH-4AL-DSP 32-bit core running at 266 MHz in a 417-LFBGA (13×13) package. Designed for embedded, consumer applications, it delivers a compact, surface-mount solution for board-level integration where a 32-bit processing core and moderate operating frequency are required.

Key attributes include 3.3 V I/O compatibility, RoHS compliance, and an operating temperature range of −20 °C to 75 °C, making it suitable for a range of consumer-grade embedded designs.

Key Features

• Core Architecture  Single SH-4AL-DSP 32-bit core (SH7780) providing the device's processor capability as described in the product listing.
• Operating Speed  266 MHz core clock speed for applications requiring moderate processing throughput.
• Voltage I/O  3.3 V I/O signaling to match common embedded system voltage domains.
• Package & Mounting  417-LFBGA package (13×13 mm) with surface-mount mounting type for high-density board designs.
• Qualification & Compliance  Consumer-qualified device and RoHS compliant to support regulatory and environmental requirements.
• Temperature Range  Rated for operation from −20 °C to 75 °C to accommodate typical consumer embedded environments.
• Graphics Acceleration  No graphics acceleration documented for this part.

Typical Applications

• Consumer Embedded Systems  Suited to consumer-grade devices that require a 32-bit microprocessor in a compact LFBGA footprint.
• Embedded Control and Processing  Appropriate for general embedded processing tasks where a single SH-4AL-DSP core at 266 MHz meets system requirements.
• Compact Board-Level Designs  Surface-mount 417-LFBGA package supports small-form-factor PCBs and dense component layouts.

Unique Advantages

• Single SH-4AL-DSP 32-bit Core:  Provides a defined processing architecture for embedded software development and predictable single-core execution.
• 266 MHz Operation:  Delivers a balanced performance point for consumer embedded applications without exceeding the part's specified clock rate.
• 3.3 V I/O Compatibility:  Matches common embedded I/O voltage domains to simplify interfacing with other board components.
• Compact LFBGA Packaging:  417-LFBGA (13×13 mm) enables high-density placement and space-efficient board designs.
• RoHS Compliant & Consumer Qualified:  Meets environmental compliance and is targeted for consumer-grade product use.
• Wide Operating Temperature Window:  Rated from −20 °C to 75 °C to support typical consumer-environment deployments.

Why Choose R8A77220AC266BAV?

The R8A77220AC266BAV positions itself as a compact, consumer-qualified microprocessor solution combining a single SH-4AL-DSP 32-bit core running at 266 MHz with a 417-LFBGA surface-mount package. Its 3.3 V I/O, RoHS compliance, and defined temperature range make it a practical choice for embedded consumer applications that require a reliable, board-level MPU option within the R8A77220A series from Renesas.

Choose this part when you need a straightforward, specification-driven MPU for compact designs where package density, standard I/O voltage, and consumer qualification are primary considerations.

Request a quote or submit your procurement request to obtain pricing and availability for the R8A77220AC266BAV. Our team can assist with lead times and order processing for this Renesas SH7780 series microprocessor.
