R8A77220AC266BGV

The R8A77220AC266BGV is a Renesas SuperH® SH-4AL-DSP microprocessor in a compact 449-FBGA (21×21) package. It implements a single SH-4AL-DSP 32-bit core running at 266 MHz with 3.3 V I/O, targeted for consumer embedded applications.

Designed for surface-mount integration, this device balances processing capability and board-level footprint while providing consumer-grade qualification and RoHS compliance for environmentally conscious designs.

Key Features

• Core SH-4AL-DSP single 32-bit core delivering 266 MHz clock performance for embedded processing tasks.
• Voltage / I/O 3.3 V I/O voltage compatibility for interfacing with common embedded peripherals and logic levels.

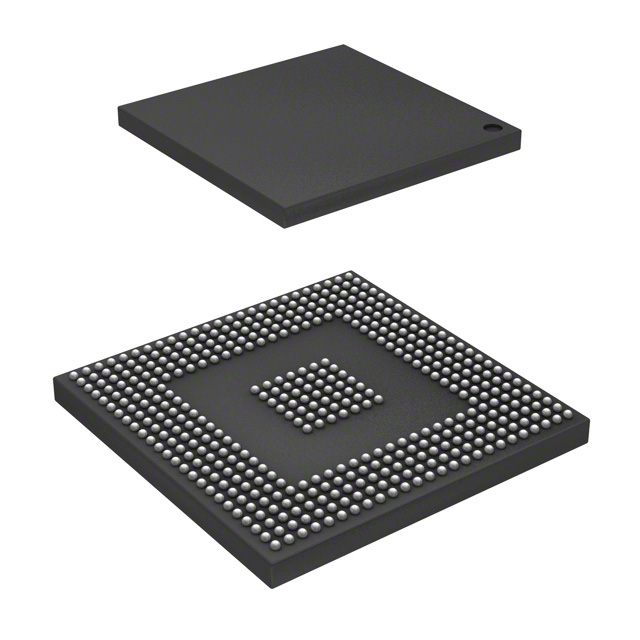

• Package & Mounting 449-FBGA (21×21) supplier device package in a surface mount form factor to minimize PCB area and support automated assembly.
• Qualification & Compliance Consumer qualification and RoHS compliance to meet environmental and market requirements for consumer electronics.
• Operating Range Specified operating temperature range of -20°C to 75°C for use in typical consumer environments.
• Graphics Acceleration No graphics acceleration included, indicating focus on CPU/DSP tasks rather than dedicated graphics processing.

Typical Applications

• Consumer Embedded Devices — Suited for consumer-focused embedded systems that require a single 32-bit core at 266 MHz and RoHS compliance.
• Embedded Processing Modules — Appropriate where a compact BGA package and 3.3 V I/O are required for module-level integration.
• OEM Consumer Integrations — Designed for board-level integration by OEMs building consumer electronics with moderate processing needs.

Unique Advantages

• Single SH-4AL-DSP 32‑bit Core: Provides a focused processing engine at 266 MHz for embedded compute tasks.
• Compact 449‑FBGA Package: 21×21 BGA reduces PCB footprint and supports high-density board layouts.
• 3.3 V I/O Compatibility: Matches common logic levels, simplifying system-level interfacing.
• Surface Mount Ready: Standard SMT form factor for automated assembly and reliable board mounting.
• Consumer Qualification & RoHS Compliance: Meets consumer market requirements and environmental standards.
• Wide Operational Temperature: Rated for -20°C to 75°C to cover typical consumer operating conditions.

Why Choose R8A77220AC266BGV?

The R8A77220AC266BGV combines a single SH-4AL-DSP 32-bit core running at 266 MHz with a compact 449-FBGA package and 3.3 V I/O to deliver a balanced solution for consumer embedded designs. Its consumer qualification, RoHS compliance, and surface-mount BGA footprint make it suitable for space-constrained boards and production-ready assemblies.

Backed by Renesas, this part is appropriate for designers and OEMs seeking a verified SuperH-based processor option for consumer applications that require defined operating temperature support and standard voltage interfacing.

If you would like pricing, availability, or to request a quote for R8A77220AC266BGV, submit a request and our team will provide a prompt response.
