SB80L186-16

The SB80L186-16 is a single-core 80C186 microprocessor from the Am80186 series by Advanced Micro Devices. It provides a 16-bit core operating at 16 MHz with an integrated DRAM controller and 3 V I/O capability, packaged for surface-mount applications.

Designed for embedded applications, this commercial-grade microprocessor delivers a compact, mountable solution in an 80-pin SQFP package with an operating temperature range of 0°C to 70°C and RoHS compliance.

Key Features

• Core 80C186 single 16-bit core architecture running at 16 MHz for deterministic control tasks.
• Memory Support Built-in DRAM controller to simplify connection to external DRAM and reduce system component count.
• Power and I/O 3 V I/O signaling suitable for systems specifying low-voltage interfacing.

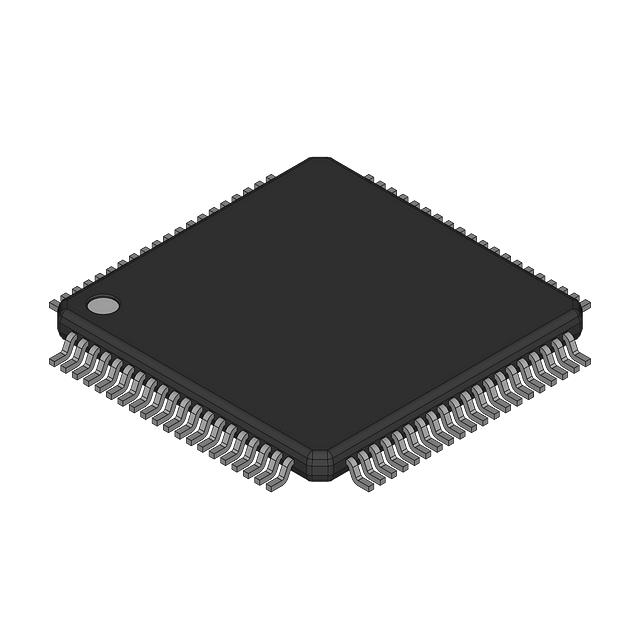

• Package and Mounting Surface-mount 80-pin SQFP (80-QFP package case) for dense board layouts and automated assembly.
• Operating Range Commercial-grade temperature range of 0°C to 70°C for standard embedded environments.
• Environmental Compliance RoHS compliant to meet lead-free assembly and regulatory requirements.

Typical Applications

• Embedded control — Single-core 16-bit processing at 16 MHz for control and coordination tasks in embedded systems.
• Legacy system maintenance — Replacement or refurbishment projects using the Am80186 series footprint and capabilities.
• Instrumentation and monitoring — Low-to-moderate performance data acquisition and interface handling leveraging the DRAM controller and 3 V I/O.

Unique Advantages

• Single-chip microprocessor solution: A complete 80C186 core with DRAM controller reduces external logic and streamlines board design.
• Compact surface-mount package: 80-SQFP footprint enables high-density layouts and automated assembly for volume production.
• Low-voltage I/O: 3 V I/O simplifies interfacing with low-voltage peripherals and modern logic families.
• Commercial-grade suitability: Rated for 0°C to 70°C operations, appropriate for standard industrial and consumer embedded products.
• RoHS compliance: Supports lead-free assembly and regulatory requirements for current manufacturing standards.

Why Choose SB80L186-16?

The SB80L186-16 positions itself as a straightforward, compact microprocessor choice for embedded designs that require a 16-bit 80C186 core at 16 MHz. Its integrated DRAM controller, 3 V I/O, and surface-mount 80-SQFP package make it suitable for projects focused on streamlined BOM and space-constrained PCBs.

Manufactured by Advanced Micro Devices and part of the Am80186 series, this commercial-grade device is appropriate for applications where reliable, proven 16-bit processing and RoHS compliance are priorities.

Request a quote or submit an inquiry to receive pricing and availability for the SB80L186-16. Our team can provide lead-time information and assist with purchasing details.
