SCP2201VMU

The SCP2201VMU is an ARM926EJ-S based microprocessor IC featuring a single 32-bit core in a 236-MAPBGA (9×9) package. It is positioned for embedded applications and is qualified for industrial use.

On-chip integration includes DDR and SDRAM memory controllers, an LCD display controller, USB 2.0 OTG connectivity, AC’97 audio interface support and cryptography features, enabling compact system designs that operate across an extended temperature range.

Key Features

• Core  ARM926EJ-S single 32-bit core providing the processor foundation for embedded control and application tasks.
• Memory Controllers  Integrated DDR and SDRAM controllers for interfacing with external memory subsystems.
• Display  LCD display interface controller for driving embedded user interfaces and panels.
• USB  USB 2.0 OTG (1) connectivity to support host/device peripheral configurations.
• Audio Interface  AC’97 additional interface for legacy audio codec integration.
• Security  On-chip cryptography features to support security functions required by embedded systems.
• Graphics  No graphics acceleration—suitable for designs that rely on software-driven graphics or simpler display requirements.

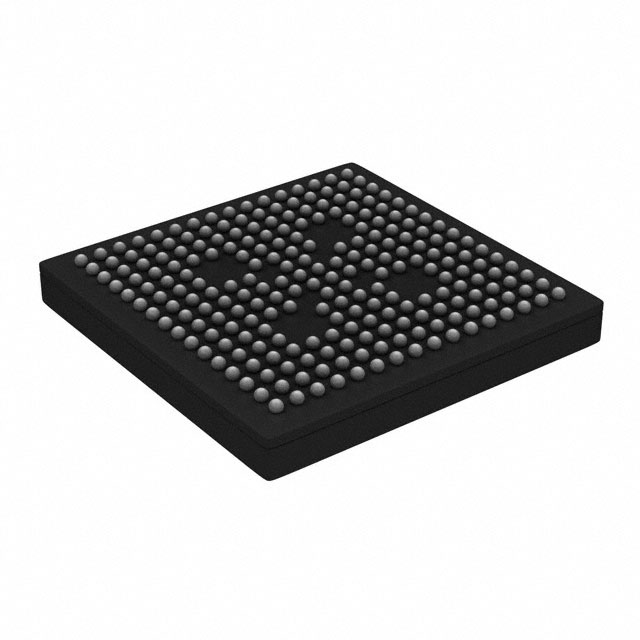

• Package & Mounting  236-MAPBGA (9×9) supplier device package / 236-LFBGA package case with surface mount mounting type for compact PCB assembly.
• Environmental & Qualification  Industrial qualification with operating temperature range of -40 °C to 105 °C and RoHS compliant status.

Typical Applications

• Industrial Control  Embedded controllers and automation equipment that require industrial qualification and extended temperature operation.
• Human–Machine Interfaces (HMIs)  LCD-driven operator panels and displays where the integrated display controller simplifies interface design.
• Edge Connectivity Devices  Embedded devices needing USB 2.0 OTG connectivity for peripheral attachment or host/device roles.
• Audio-Enabled Systems  Products integrating AC’97 audio codecs for legacy audio paths in embedded platforms.

Unique Advantages

• Industrial Temperature Range:  Rated from -40 °C to 105 °C to support deployment in harsh or outdoor environments.
• Integrated Memory Interfaces:  On-chip DDR and SDRAM controllers reduce external components and simplify memory subsystem design.
• Flexible Peripheral Support:  USB 2.0 OTG plus AC’97 support enables versatile I/O configurations for connectivity and audio.
• Security Features Included:  Cryptography capabilities on the device support implementation of secure embedded functions.
• Compact BGA Packaging:  236-MAPBGA (9×9) surface-mount package enables space-efficient board layouts for compact products.
• Manufacturer Backing:  Produced by NXP Semiconductors and offered with industrial-grade qualification for embedded system use.

Why Choose SCP2201VMU?

The SCP2201VMU combines an ARM926EJ-S 32-bit core with integrated memory controllers, display and audio interfaces, USB OTG and cryptography features to deliver a compact, industrial-grade microprocessor solution. Its 236-MAPBGA (9×9) package and surface-mount mounting enable dense board integration while supporting -40 °C to 105 °C operation.

This device is well suited for designers building industrial embedded systems, HMIs, edge connectivity appliances and audio-enabled products that require a balance of integration and rugged operating range, backed by NXP Semiconductors.

Request a quote or submit a purchase inquiry for the SCP2201VMU to get pricing and availability information tailored to your project needs.
