SVF521R3K1CMK4

The SVF521R3K1CMK4 is a Vybrid dual‑core microprocessor from NXP Semiconductors featuring ARM® Cortex®‑A5 and Cortex®‑M4 cores in a 32‑bit architecture. It combines multi‑core processing with a wide set of embedded interfaces and security features for industrial embedded applications.

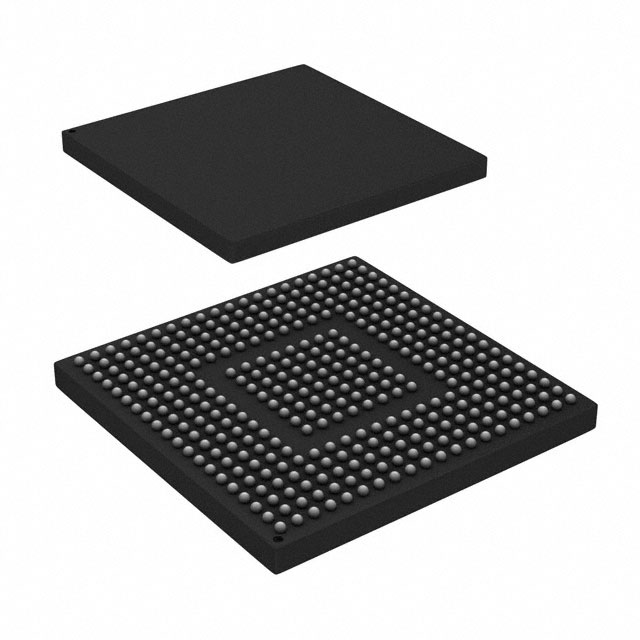

Designed for embedded systems requiring integrated I/O, memory flexibility and industrial qualification, this device delivers up to 400 MHz performance, extensive display and connectivity controllers, and a 364‑LFBGA (17×17) surface‑mount package.

Key Features

• Dual‑Core Architecture — ARM® Cortex®‑A5 + Cortex®‑M4 cores in a 2‑core, 32‑bit configuration for task partitioning between application and real‑time processing.
• Performance — Device speed listed at 400 MHz to support compute‑intensive embedded workloads.
• Memory Controllers — Integrated controllers for LPDDR2, DDR3 and general DRAM to support a range of memory configurations.
• Display & Video Interfaces — Display controller set including DCU, GPU, LCD, VideoADC and VIU for handling display and video capture tasks.
• Connectivity — Dual 10/100 Mbps Ethernet ports, USB 2.0 OTG with PHY, and CAN interface for industrial networking and peripheral connectivity.
• Security & System Management — On‑chip ARM TrustZone, hashing, RNG, RTC/RTIC, Secure JTAG, SNVS, TZ ASC and TZ WDOG for system security and reliability features.
• Power & I/O — 3.3 V I/O support suitable for standard embedded I/O voltage domains.
• Package & Temperature — 364‑LFBGA (17×17) surface‑mount package rated for industrial operation from −40 °C to 85 °C.

Typical Applications

• Industrial Control — Dual‑core processing and industrial temperature qualification enable control and monitoring systems that require both application and real‑time processing.
• Embedded Networking & Gateways — Built‑in dual 10/100 Mbps Ethernet, USB OTG and CAN support networked embedded devices and protocol bridging.
• Human‑Machine Interfaces — Display and video interface controllers allow implementation of operator displays and simple graphical interfaces in embedded equipment.
• Secure Embedded Systems — Hardware security features such as TrustZone, secure JTAG and RNG help protect device integrity and secure boot/operation workflows.

Unique Advantages

• Integrated Dual‑Core Processing: Separate ARM Cortex‑A5 and Cortex‑M4 cores enable efficient partitioning of high‑level applications and deterministic real‑time tasks.
• Broad I/O Integration: Ethernet, USB OTG, CAN and multiple display/video interfaces reduce external controller requirements and simplify system design.
• Flexible Memory Support: On‑chip controllers for LPDDR2, DDR3 and DRAM accommodate a range of system memory choices and performance targets.
• Industrial Qualification: Specified operating range of −40 °C to 85 °C supports deployment in industrial environments.
• Comprehensive Security Toolkit: Multiple security features including ARM TrustZone, hashing, RNG and secure JTAG help address embedded security requirements.
• Compact Surface‑Mount Package: 364‑LFBGA (17×17) package offers a high level of integration in a compact form factor for space‑constrained designs.

Why Choose SVF521R3K1CMK4?

The SVF521R3K1CMK4 positions itself as a highly integrated Vybrid microprocessor option for industrial embedded designs that need a mix of application‑level and real‑time processing. With ARM® Cortex®‑A5 and Cortex®‑M4 cores, flexible memory support, multiple connectivity options and a comprehensive set of security features, it is suited for systems that demand reliable operation across a broad temperature range.

Backed by NXP Semiconductors, this device provides a balance of performance, integration and industrial qualification that can simplify BOMs and accelerate time to market for embedded system developers.

Request a quote or submit a purchasing inquiry today to evaluate SVF521R3K1CMK4 for your next embedded design.
