T4160NXE7PQB

The T4160NXE7PQB is an NXP Semiconductors QorIQ T4 family microprocessor featuring an 8‑core PowerPC e6500 architecture running at 1.8 GHz. Designed for embedded and industrial applications, the device combines multicore compute performance with a broad set of high‑speed interfaces and security features.

With industrial qualification and an extended operating temperature range, this 1932‑FCPBGA (45×45) package targets designs that require sustained processing, networking and system integration in demanding environments.

Key Features

• Core and Architecture Eight PowerPC e6500 cores at 1.8 GHz delivering 64‑bit processing for parallel embedded workloads.
• Memory Integrated DDR3 / DDR3L memory controllers for standard embedded memory configurations.
• Networking Extensive Ethernet connectivity with thirteen 1 Gbps ports and two 10 Gbps ports to support high‑density networking and gateway applications.
• Storage and USB Two SATA 3 Gbps ports for storage and two USB 2.0 controllers with PHY for peripheral connectivity.
• Peripheral Interfaces I2C interface support enables sensor and control bus integration.
• Security On‑chip Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection and Volatile Key Storage for secured system boot and protected key handling.

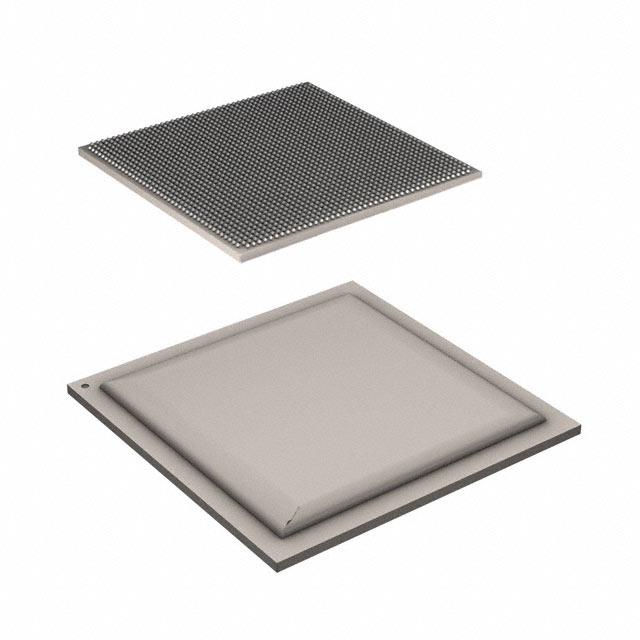

• Package and Mounting 1932‑FCPBGA (45×45) FCBGA package, surface‑mountable for compact board designs.
• Industrial Qualification and Temperature Range Qualified for industrial use with an operating temperature range of −40 °C to 105 °C.
• RoHS Compliance Device is RoHS compliant.

Typical Applications

• Industrial Networking and Gateways — Multi‑port 1 Gbps and 10 Gbps Ethernet interfaces enable aggregation, switching and gateway functions in industrial networks.
• Embedded Compute Platforms — Eight 64‑bit cores and DDR3/DDR3L memory support compute‑intensive embedded control and processing tasks.
• Storage and Peripheral Controllers — SATA and USB interfaces provide direct support for local storage and peripheral connectivity in embedded systems.
• Secure Embedded Systems — Built‑in security features support applications requiring secure boot, cryptography and tamper detection.

Unique Advantages

• High‑density networking integration: Thirteen 1 Gbps and two 10 Gbps Ethernet ports reduce external transceivers and simplify board design for networked products.
• Multicore 64‑bit performance: Eight PowerPC e6500 cores at 1.8 GHz provide parallel processing headroom for multi‑threaded embedded workloads.
• Industrial readiness: Industrial qualification and a −40 °C to 105 °C operating range support reliable operation in harsh environments.
• Comprehensive security blocks: On‑chip boot and cryptography features help protect system integrity and sensitive keys without external security ICs.
• Compact, manufacturable package: 1932‑FCPBGA (45×45) surface‑mount package enables dense board layouts while aligning with standard PCB assembly processes.

Why Choose T4160NXE7PQB?

The T4160NXE7PQB positions itself as a high‑performance, feature‑rich processor for embedded and industrial systems that require multicore compute, extensive networking, and integrated security. Its combination of eight 64‑bit PowerPC cores, multiple high‑speed Ethernet ports, and storage/peripheral interfaces makes it suitable for complex gateway, controller and compute modules.

With industrial qualification, broad interface integration and RoHS compliance, this NXP QorIQ T4 device supports scalable designs where long‑term reliability and hardware security are key considerations.

Request a quote or submit an inquiry today to discuss pricing, lead times and integration support for the T4160NXE7PQB.
