Z8401510FEG

The Z8401510FEG from Zilog is an industrial-grade 8-bit microprocessor based on the Z80 core, running at 10 MHz. It provides a single-core processing element with 5 V I/O and a Watchdog Timer interface in a 100‑pin QFP surface-mount package.

Designed for embedded applications that require a compact, standard-package MPU with extended temperature capability, this device supports deployments across a broad environmental range while meeting RoHS requirements.

Key Features

• Core & Performance — Single Z80 core with an 8-bit bus width operating at 10 MHz for deterministic 8-bit processing.
• Voltage I/O — 5 V I/O levels for compatibility with 5 V logic systems.

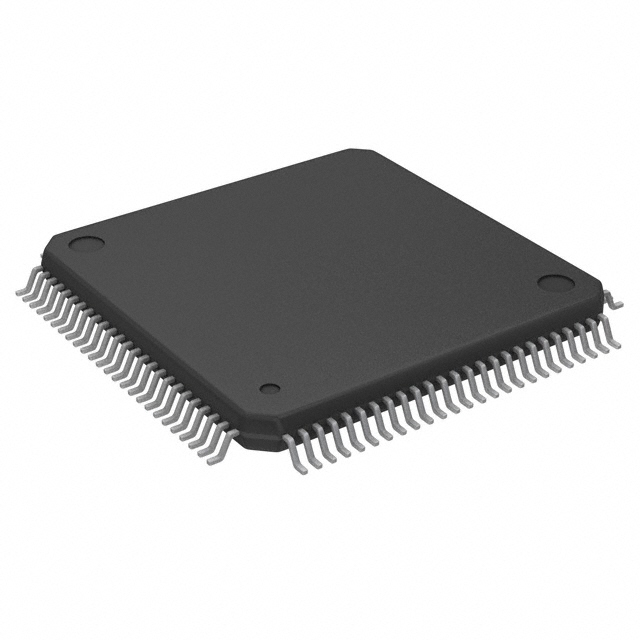

• Package & Mounting — 100‑QFP supplier device package, provided as a surface-mount component for PCB-level integration.
• Industrial Grade & Temperature Range — Rated for industrial grade operation with an operating temperature range of −40 °C to 100 °C.
• System Reliability — Includes a Watchdog Timer (WDT) interface to support supervisory and fail-safe functions.
• Environmental Compliance — RoHS compliant to support environmental and regulatory needs.

Typical Applications

• Embedded systems — Board-level microprocessor for general embedded control where an 8-bit Z80 core and 5 V I/O are required.
• Industrial control and instrumentation — Suitable for equipment operating across −40 °C to 100 °C thanks to its industrial-grade rating.
• Compact surface-mount designs — 100‑QFP surface-mount package enables integration into space-constrained PCBs.
• Legacy system maintenance — Z80 core makes the device appropriate for maintaining or replacing components in existing Z80-based designs.

Unique Advantages

• Wide operating temperature — −40 °C to 100 °C rating supports reliable operation in demanding environments.
• 5 V I/O compatibility — Native 5 V I/O simplifies interfacing with established 5 V peripherals and logic families.
• Standard QFP package — 100‑pin QFP surface-mount form factor balances pin count and board-area efficiency for compact assemblies.
• Watchdog Timer interface — Built-in WDT support helps improve system robustness and uptime.
• RoHS compliant — Meets environmental compliance requirements for regulated markets and manufacturing processes.
• Straightforward 8-bit processing — Single-core Z80 architecture at 10 MHz offers predictable, deterministic performance for control tasks.

Why Choose Z8401510FEG?

The Z8401510FEG combines a classic Z80 8-bit core running at 10 MHz with industrial-grade qualifications, a 100‑pin QFP surface-mount package, and 5 V I/O—making it a practical choice for embedded designs that require a compact, reliable MPU with supervisory capability via the Watchdog Timer. Its RoHS compliance and extended temperature range support deployments where environmental and longevity considerations matter.

This MPU is well suited for engineers and procurement teams targeting embedded systems, industrial controls, and maintenance of Z80-based platforms that need a standardized package and predictable 8-bit performance across a wide temperature window.

Request a quote or submit a product inquiry today to evaluate Z8401510FEG for your next embedded or industrial project.
