Z84C0006PEC

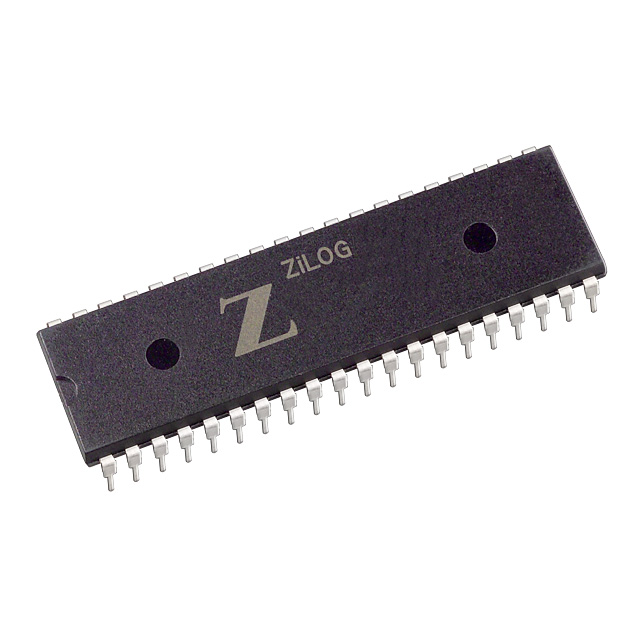

The Z84C0006PEC is a Zilog Z80 microprocessor in a single-core, 8-bit architecture running at 6 MHz, supplied in a 40-pin PDIP package for through-hole mounting. It is positioned for embedded applications where a classic Z80 core, industrial-grade robustness and straightforward integration are required.

With 5 V I/O signaling, an industrial operating temperature range and RoHS compliance, this part is suited for designs requiring stable operation across challenging environments and compatibility with standard through-hole assembly processes.

Key Features

• Core Architecture  Z80 single-core 8-bit processor providing the classic Z80 instruction set and architecture.
• Clock Speed  Operates at 6 MHz to match legacy and low‑frequency embedded system requirements.
• Voltage I/O  5 V I/O signaling for compatibility with traditional 5 V embedded designs.
• Industrial Grade & Temperature Range  Rated for industrial use with an operating temperature range of -40°C to 100°C for reliable performance in demanding environments.
• Package & Mounting  40‑pin PDIP (40‑DIP, 0.620", 15.75 mm) package designed for through‑hole mounting and easy prototyping or replacement in existing through‑hole assemblies.
• RoHS Compliant  Meets RoHS environmental requirements for reduced hazardous substances.

Typical Applications

• Embedded Systems  Used as a primary control processor in embedded applications that require an 8‑bit Z80 core and 5 V I/O.
• Industrial Control  Industrial-grade temperature rating and robust construction make it suitable for control and automation modules operating across wide temperature ranges.
• Legacy and Maintenance  Ideal for maintaining or refurbishing legacy equipment that was designed around a Z80-compatible DIP footprint and 5 V logic.
• Prototyping and Development  Through‑hole 40‑PDIP package simplifies breadboarding, hand‑soldering and early-stage hardware development.

Unique Advantages

• Proven Z80 Core:  Single Z80 8‑bit core provides a familiar architecture for engineers maintaining or developing around Z80-based systems.
• Industrial Temperature Range:  Rated from -40°C to 100°C to support deployments in harsher thermal environments without derating.
• Through‑Hole PDIP Package:  40‑pin PDIP (0.620", 15.75 mm) eases prototyping, repair and retrofit in systems that rely on through‑hole components.
• 5 V Logic Compatibility:  Standard 5 V I/O supports integration with existing 5 V peripherals and legacy boards.
• RoHS Compliance:  Meets environmental requirements for restricted substances, aiding regulatory alignment in product builds.
• Manufacturer Backing:  Produced by Zilog, the device is part of the Z80 family with manufacturer documentation available for design and development.

Why Choose Z84C0006PEC?

The Z84C0006PEC offers a compact, industry‑grade implementation of the Z80 8‑bit core at a 6 MHz clock rate, packaged in a familiar 40‑pin PDIP for straightforward integration into embedded and legacy systems. Its 5 V I/O and wide operating temperature range make it a practical choice where established hardware formats and environmental robustness are required.

This part is well suited to engineers and procurement teams maintaining legacy platforms, developing new embedded controllers with proven architectures, or prototyping on through‑hole hardware. Its RoHS compliance and Zilog manufacturer support contribute to long‑term sourcing and documentation stability for production and maintenance lifecycles.
