Z84C0008AEG

The Z84C0008AEG is a Zilog Z80 microprocessor implementing a single-core, 8-bit Z80 core with an 8 MHz operating speed. Packaged in a 44-LQFP (10x10) surface-mount package, it is intended for embedded microprocessor applications within the Microprocessors – Embedded category.

Designed for industrial-grade environments, the device supports 5 V I/O and an operating temperature range of -40 °C to 100 °C, providing a reliable option for industrial embedded designs requiring proven 8-bit processing.

Key Features

• Core and Architecture  Single-core Z80 8-bit core running at 8 MHz for classic 8-bit processing tasks.
• Supply and I/O  5 V I/O voltage compatibility for systems designed around standard 5 V logic levels.

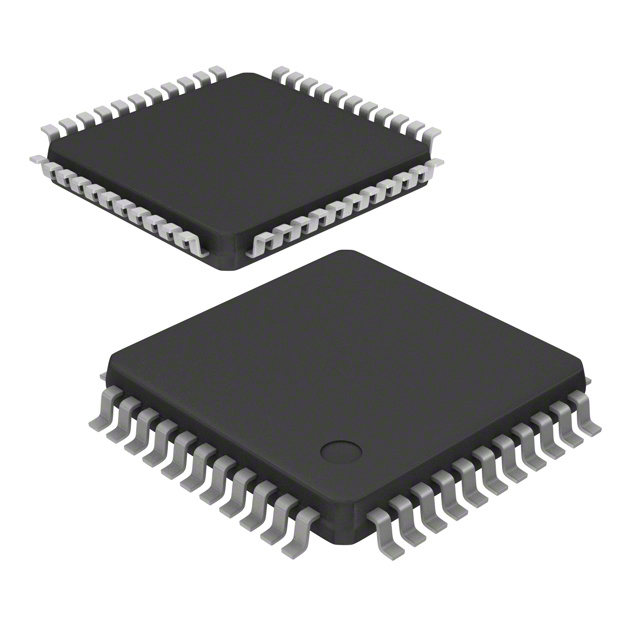

• Package and Mounting  44-LQFP package (10x10) in a surface-mount format for compact PCB integration.
• Industrial Grade  Rated as Industrial grade with an operating temperature range of -40 °C to 100 °C for demanding environments.
• Integration  Single-core implementation and 8-bit bus width simplify integration into legacy and resource-constrained embedded systems.
• Standards Compliance  RoHS compliant, supporting environmental and manufacturing requirements.

Typical Applications

• Industrial Embedded Systems  Use as a control processor in industrial equipment where an industrial temperature range and 5 V I/O are required.
• Embedded Control  Suitable for embedded control tasks that leverage an 8-bit Z80 core at 8 MHz for deterministic, low-complexity processing.
• Legacy System Upgrades  Ideal for maintaining or replacing components in existing Z80-based embedded platforms that require a surface-mount LQFP package.

Unique Advantages

• Proven Z80 Core:  Implements the Z80 core for compatibility with established 8-bit software and design approaches.
• Industrial Temperature Range:  Operates from -40 °C to 100 °C to meet the needs of harsh or variable environments.
• 5 V I/O Compatibility:  Direct support for 5 V logic simplifies integration with legacy peripherals and system designs.
• Compact Surface-Mount Package:  44-LQFP (10x10) package enables dense PCB layouts and standard surface-mount assembly processes.
• RoHS Compliant:  Meets RoHS requirements for environmental and regulatory compliance in manufacturing.

Why Choose Z84C0008AEG?

The Z84C0008AEG positions a classic Z80 8-bit architecture into a modern surface-mount 44-LQFP package, offering a straightforward solution for engineers working on industrial and embedded designs that require reliable, low-complexity processing. With an 8 MHz clock speed, 5 V I/O compatibility, and an industrial temperature rating of -40 °C to 100 °C, it balances ease of integration with environmental robustness.

Manufactured by Zilog and compliant with RoHS, the Z84C0008AEG is suitable for teams maintaining or developing embedded systems where a compact, industry-rated Z80 microprocessor is required. Its specifications make it a practical choice for designs prioritizing predictable 8-bit performance and established system compatibility.

Request a quote or submit an inquiry for the Z84C0008AEG to get pricing and availability information for your next embedded project.
