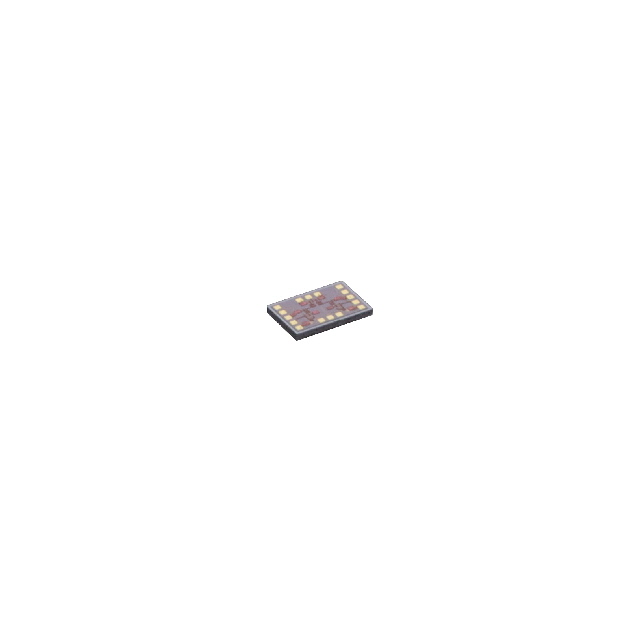

HMC347B-SX
IC RF SWITCH SPDT 20GHZ DIE
| Part Description |
RF Switch IC VSAT SPDT 50Ohm Die |
|---|---|
| Quantity | 1,521 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | Die |
|---|---|
| Device Package | Die |
| Voltage | - |
| Operating Temperature | -55°C ~ 85°C |
| RF Type: | VSAT |
| Topology: | Absorptive |
| Circuit: | SPDT |
| Frequency Range: | 100MHz ~ 20GHz |
| Isolation: | 45dB |
| Insertion Loss: | 1.7dB |
| Test Frequency: | 20GHz |
| P1dB: | 25dBm |
| IIP3: | 41dBm |
| Impedance: | 50Ohm |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | Not Applicable |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
