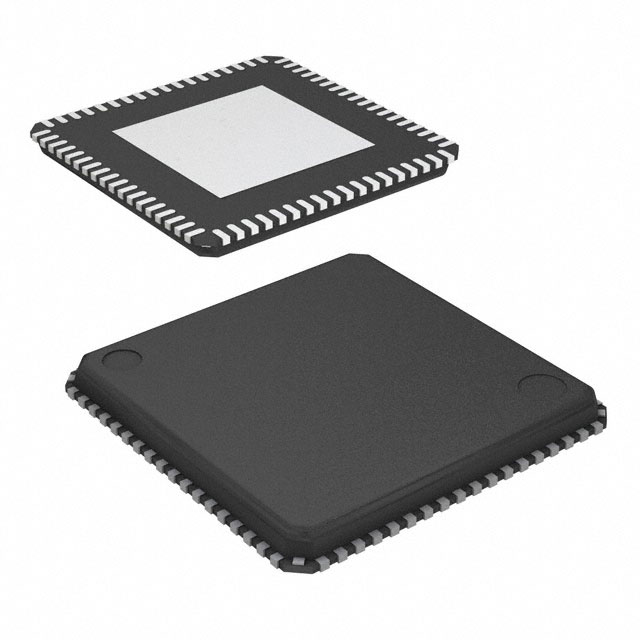

LTC5800IWR-IPMA#PBF
IC RF TXRX+MCU 802.15.4 72VFQFN
| Part Description |
IC RF TxRx + MCU 802.15.4 6LoWPAN 2.4GHz 72-VFQFN Exposed Pad |
|---|---|
| Quantity | 344 Available (as of May 6, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 72-VFQFN Exposed Pad |
|---|---|
| Device Package | 72-QFN (10×10) |
| Mounting Method | Surface Mount |
| Voltage | 2.1V ~ 3.76V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Protocol: | 6LoWPAN |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 250kbps |
| Power – Output: | 8dBm |
| Sensitivity: | -95dBm |
| Memory Size: | 512kB Flash, 72kB SRAM |
| Serial Interfaces: | I2C, JTAG, SPI, UART |
| GPIO: | 27 |
| Voltage – Supply: | 2.1V ~ 3.76V |
| Current – Receiving: | 4.5mA |
| Current – Transmitting: | 5.4mA ~ 9.7mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.39.0001 |
