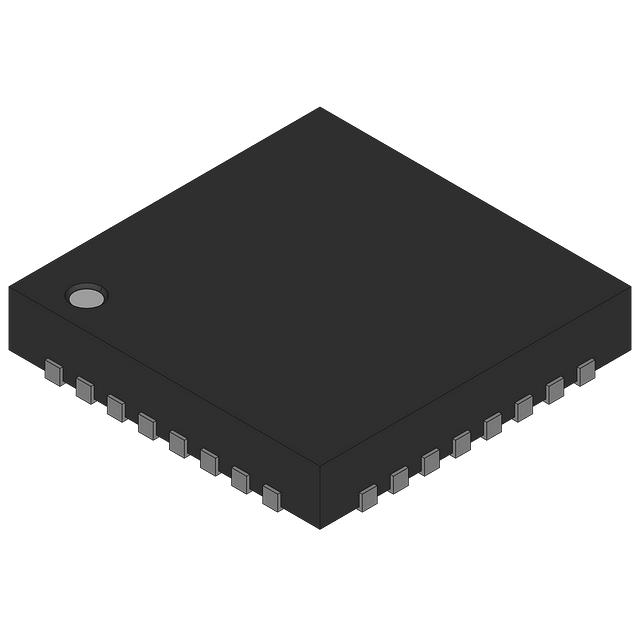

MAX2820ETM
802.11B ZERO-IF TRANSCEIVER
| Part Description |
IC RF TxRx Only General ISM > 1GHz 802.11b 2.4GHz ~ 2.5GHz 48-WFQFN Exposed Pad |
|---|---|
| Quantity | 1,084 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 1 Weeks |
| Datasheet |
Specifications
| Part Package | 48-WFQFN Exposed Pad |
|---|---|
| Device Package | 48-TQFN (7×7) |
| Mounting Method | Surface Mount |
| Voltage | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM > 1GHz |
| Protocol: | 802.11b |
| Modulation: | CCK |
| Frequency: | 2.4GHz ~ 2.5GHz |
| Data Rate (Max): | 22Mbps |
| Power – Output: | 3dBm |
| Sensitivity: | -97dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 2.7V ~ 3.6V |
Environmental
| REACH Compliance | REACH Affected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 5A991G |
| HTS Code | 8542.39.0001 |
