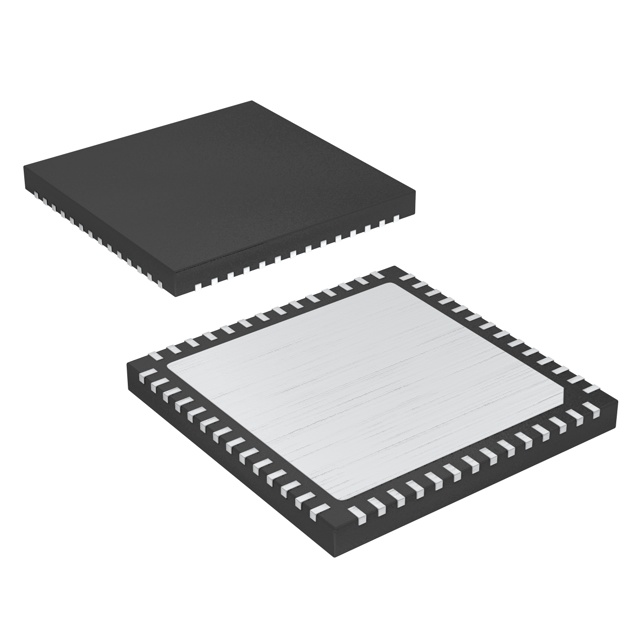

MAX2829ETN+T
IC RF TXRX WIFI 56WFQFN
| Part Description |
IC RF TxRx Only WiFi 802.11a/b/g 2.4GHz, 5GHz 56-WFQFN Exposed Pad |
|---|---|
| Quantity | 296 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 42 Weeks |
| Datasheet |
Specifications
| Part Package | 56-WFQFN Exposed Pad |
|---|---|
| Device Package | 56-TQFN (8×8) |
| Mounting Method | Surface Mount |
| Voltage | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | WiFi |
| Protocol: | 802.11a/b/g |
| Modulation: | CCK, DSSS, OFDM |
| Frequency: | 2.4GHz, 5GHz |
| Data Rate (Max): | 54Mbps |
| Power – Output: | -2dBm |
| Sensitivity: | -75dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 2.7V ~ 3.6V |
| Current – Receiving: | 118mA ~ 210mA |
| Current – Transmitting: | 142mA ~ 157mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A991G |
| HTS Code | 8542.39.0001 |
