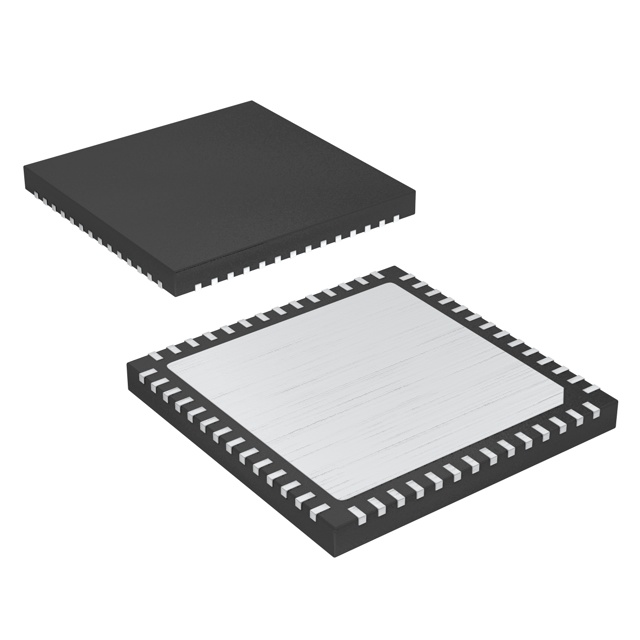

MAX2839ETN+
IC RF TXRX CELLULAR 56WFQFN
| Part Description |
IC RF TxRx Only Cellular WiMAX 2.3GHz ~ 2.7GHz 56-WFQFN Exposed Pad |
|---|---|
| Quantity | 419 Available (as of May 6, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 56-WFQFN Exposed Pad |
|---|---|
| Device Package | 56-TQFN (8×8) |
| Mounting Method | Surface Mount |
| Voltage | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | Cellular |
| Protocol: | WiMAX |
| Modulation: | 16QAM, 64QAM |
| Frequency: | 2.3GHz ~ 2.7GHz |
| Power – Output: | 0dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 2.7V ~ 3.6V |
| Current – Receiving: | 76mA ~ 117mA |
| Current – Transmitting: | 116mA ~ 140mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A991G |
| HTS Code | 8542.39.0001 |
