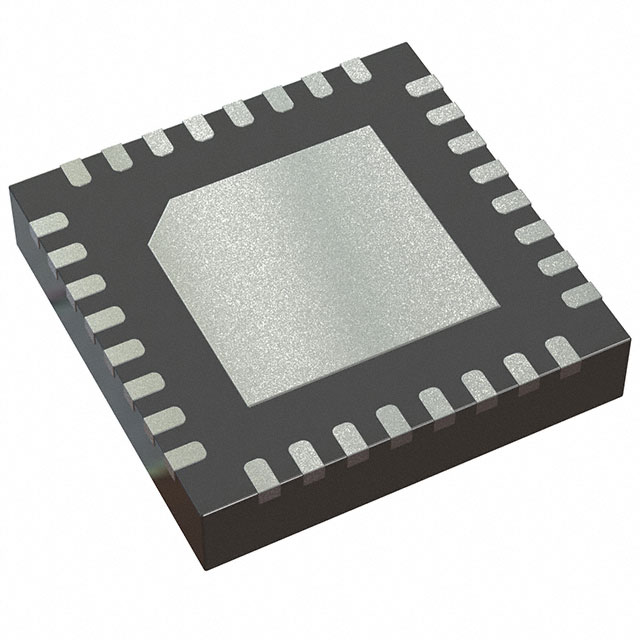

MAX7030LATJ+
IC RF TXRX ISM<1GHZ 32WFQFN
| Part Description |
IC RF TxRx Only General ISM < 1GHz 315MHz 32-WFQFN Exposed Pad |
|---|---|
| Quantity | 876 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 32-WFQFN Exposed Pad |
|---|---|
| Device Package | 32-TQFN (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.1V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | ASK, OOK |
| Frequency: | 315MHz |
| Data Rate (Max): | 66kbps |
| Power – Output: | 13.1dBm |
| Sensitivity: | -114dBm |
| Voltage – Supply: | 2.1V ~ 3.6V, 4.5V ~ 5.5V |
| Current – Receiving: | 6.4mA ~ 6.7mA |
| Current – Transmitting: | 3.5mA ~ 11.6mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 5A991A |
| HTS Code | 8542.39.0001 |
