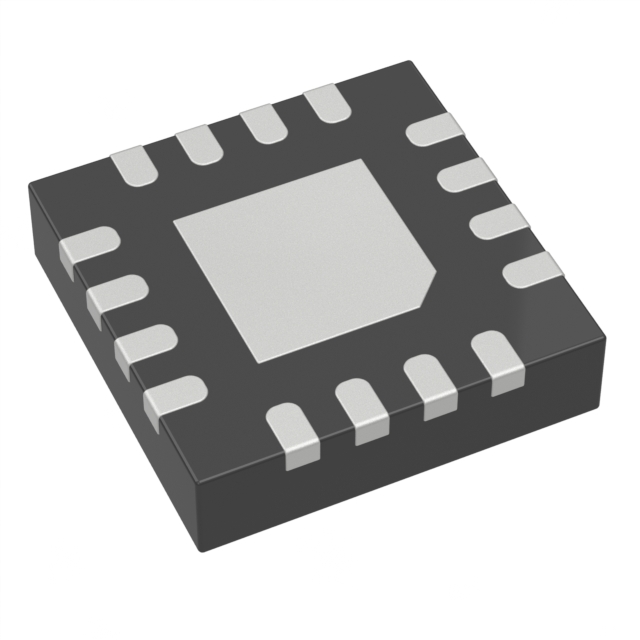

MAX9947ETE+T
IC RF TXRX AISG 16WQFN
| Part Description |
IC RF TxRx Only AISG 2.176MHz 16-WFQFN Exposed Pad |
|---|---|
| Quantity | 1,556 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 27 Weeks |
| Datasheet |
Specifications
| Part Package | 16-WFQFN Exposed Pad |
|---|---|
| Device Package | 16-TQFN (3×3) |
| Mounting Method | Surface Mount |
| Voltage | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | AISG |
| Modulation: | OOK |
| Frequency: | 2.176MHz |
| Data Rate (Max): | 115.2kbps |
| Power – Output: | 12dBm |
| Voltage – Supply: | 3V ~ 5.5V |
| Current – Receiving: | 23mA |
| Current – Transmitting: | 23mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
