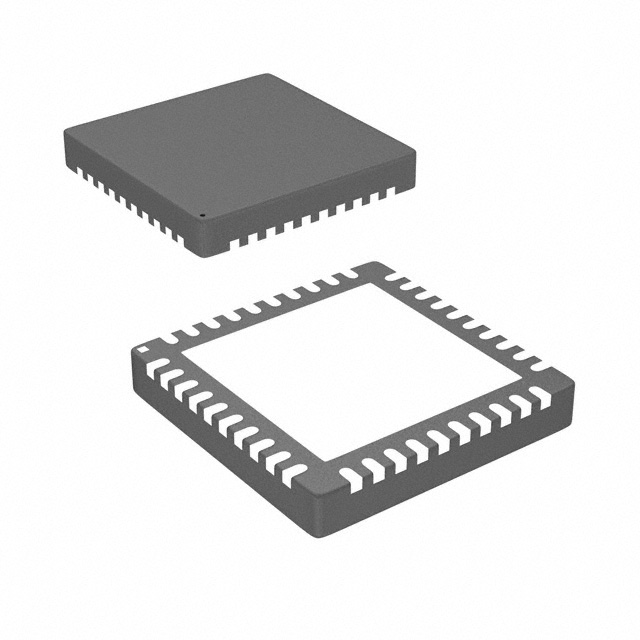

MC13202FC
IC RF TXRX 802.15.4 32VFQFN
| Part Description |
IC RF TxRx Only 802.15.4, General ISM > 1GHz Zigbee® 2.4GHz 32-VFQFN Exposed Pad |
|---|---|
| Quantity | 890 Available (as of May 6, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 32-VFQFN Exposed Pad |
|---|---|
| Device Package | 32-HVQFN (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2V ~ 3.4V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | 802.15.4, General ISM > 1GHz |
| Protocol: | Zigbee® |
| Modulation: | DSSS, O-QPSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 250kbps |
| Power – Output: | 4dBm |
| Sensitivity: | -92dBm |
| Serial Interfaces: | SPI |
| GPIO: | 7 |
| Voltage – Supply: | 2V ~ 3.4V |
| Current – Receiving: | 37mA |
| Current – Transmitting: | 30mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A991B |
| HTS Code | 8542.31.0001 |
