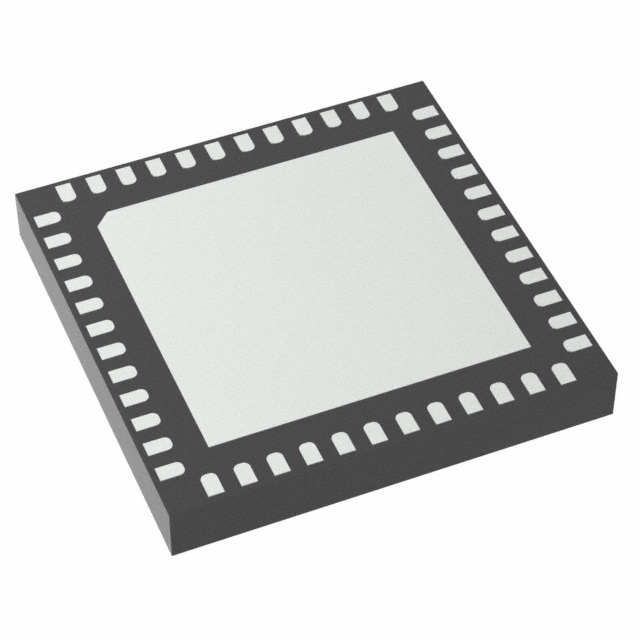

MC13237CHT
IC RF TXRX+MCU 802.15.4 48VFQFN
| Part Description |
IC RF TxRx + MCU 802.15.4 2.4GHz 48-VFQFN Exposed Pad |
|---|---|
| Quantity | 806 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 48-VFQFN Exposed Pad |
|---|---|
| Device Package | 48-MAPLGA (7×7) |
| Mounting Method | Surface Mount |
| Voltage | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Modulation: | O-QPSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 250kbps |
| Power – Output: | 2dBm |
| Sensitivity: | -93dBm |
| Memory Size: | 128kB Flash, 8kB RAM |
| Serial Interfaces: | I2C, SPI, UART |
| GPIO: | 28 |
| Voltage – Supply: | 1.8V ~ 3.6V |
| Current – Receiving: | 22.3mA ~ 34.2mA |
| Current – Transmitting: | 26.6mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A002A1 |
| HTS Code | 8542.31.0001 |
