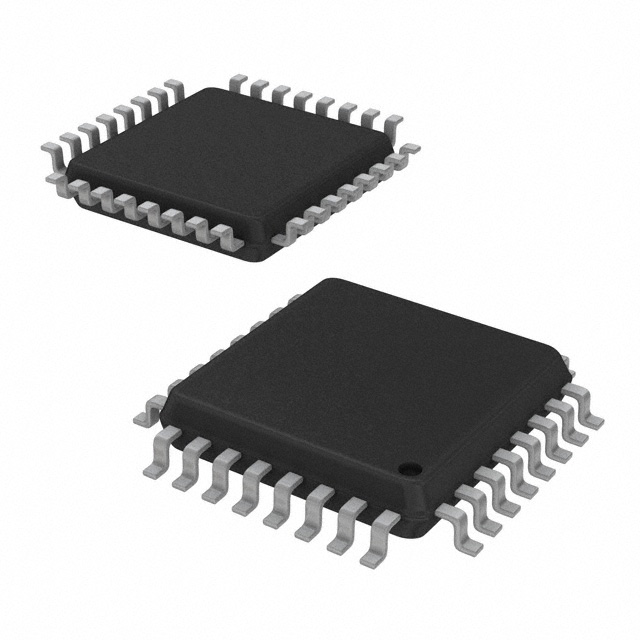

MC33696FJE
RF TRANSCEIVER FSK/OOK 3.3V/5V A
| Part Description |
IC RF TxRx Only General ISM < 1GHz 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz 32-LQFP |
|---|---|
| Quantity | 579 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Not For New Designs |
| Manufacturer Standard Lead Time | 0 Weeks |
| Datasheet |
Specifications
| Part Package | 32-LQFP |
|---|---|
| Device Package | 32-LQFP (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | FSK, OOK |
| Frequency: | 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz |
| Data Rate (Max): | 22.6kbps |
| Power – Output: | 7.25dBm |
| Sensitivity: | -106.5dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 2.7V ~ 3.6V |
| Current – Receiving: | 10.3mA ~ 24mA |
| Current – Transmitting: | 6.1mA ~ 13.5mA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
