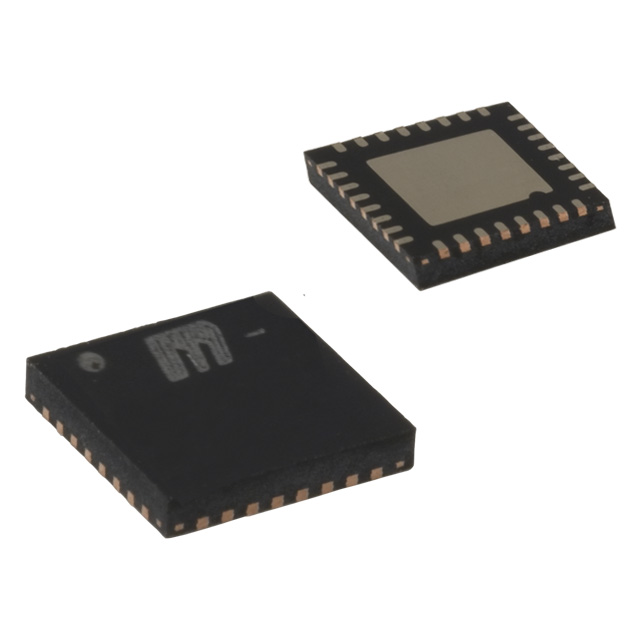

MICRF505LYML-TR
IC RF TXRX ISM<1GHZ 32VFQFN
| Part Description |
IC RF TxRx Only General ISM < 1GHz 850MHz ~ 950MHz 32-VFQFN Exposed Pad |
|---|---|
| Quantity | 219 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 52 Weeks |
| Datasheet |
Specifications
| Part Package | 32-VFQFN Exposed Pad |
|---|---|
| Device Package | 32-QFN (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.25V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | FSK |
| Frequency: | 850MHz ~ 950MHz |
| Data Rate (Max): | 200kbps |
| Power – Output: | 10dBm |
| Sensitivity: | -111dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 2.25V ~ 5.5V |
| Current – Receiving: | 8.6mA ~ 13.5mA |
| Current – Transmitting: | 14mA ~ 28mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
