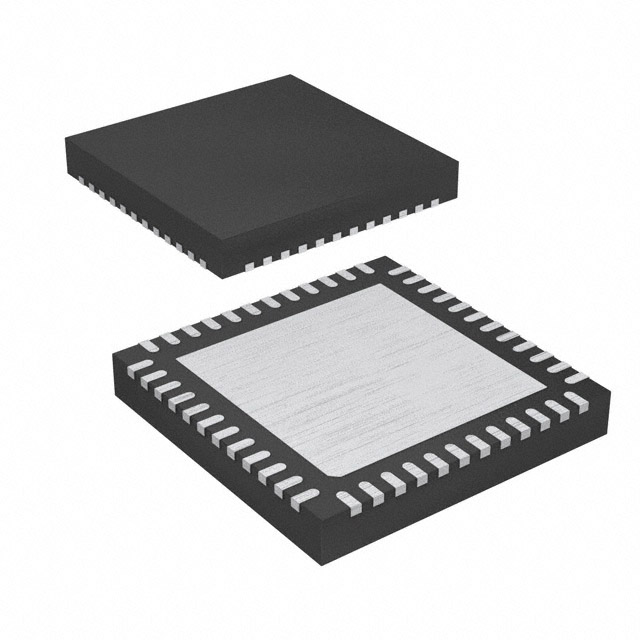

QN9020/EY
ULTRA LOW POWER BLUETOOTH LE SYS
| Part Description |
IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz ~ 2.4835GHz 48-VFQFN Exposed Pad |
|---|---|
| Quantity | 481 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 52 Weeks |
| Datasheet |
Specifications
| Part Package | 48-VFQFN Exposed Pad |
|---|---|
| Device Package | 48-HVQFN (6×6) |
| Mounting Method | Surface Mount |
| Voltage | 2.4V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Type: | TxRx + MCU |
| RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth v4.2 |
| Modulation: | GFSK |
| Frequency: | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max): | 1Mbps |
| Power – Output: | 4dBm |
| Sensitivity: | -95dBm |
| Memory Size: | 128kB Flash |
| Serial Interfaces: | I2C, SPI, UART |
| GPIO: | 31 |
| Voltage – Supply: | 2.4V ~ 3.6V |
| Current – Receiving: | 9.25mA ~ 13.6mA |
| Current – Transmitting: | 4.3mA ~ 17.6mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | N/A |
| HTS Code | N/A |
