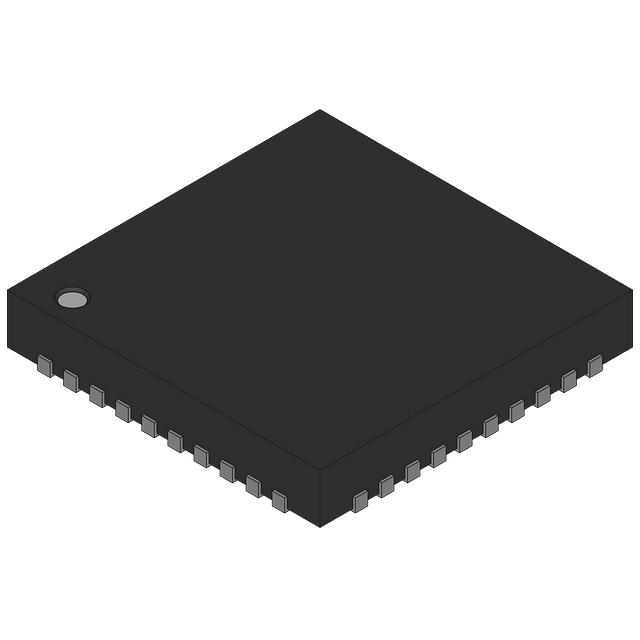

QN9022/DY
QN9022 - ULTRA LOW POWER BLUETOO
| Part Description |
IC RF TxRx Only Bluetooth Bluetooth v4.0 2.4GHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 390 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | NXP Semiconductors |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-HVQFN (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.4V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth v4.0 |
| Frequency: | 2.4GHz |
| Power – Output: | 4dBm |
| Sensitivity: | -95dBm |
| Memory Size: | 128kB Flash |
| Serial Interfaces: | I2C, SPI, UART |
| GPIO: | 31 |
| Voltage – Supply: | 2.4V ~ 3.6V |
| Current – Receiving: | 9.2mA |
| Current – Transmitting: | 8.8mA |
Environmental
| REACH Compliance | REACH not applicable |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | 5A992 |
| HTS Code | 8542.31.0001 |
