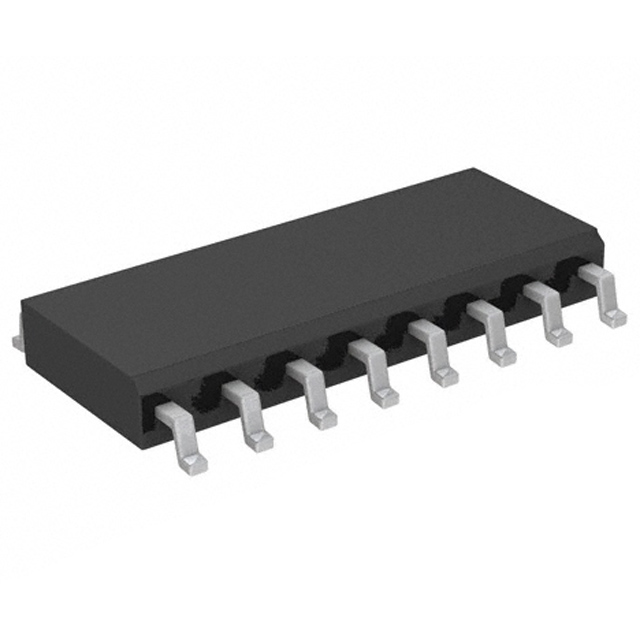

MM74HC4053WM
IC SWITCH SPDT X 3 100OHM 16SOIC
| Part Description |
3 Circuit IC Switch 2:1 100Ohm 16-SOIC |
|---|---|
| Quantity | 463 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.295″”, 7.50mm Width) |
|---|---|
| Device Package | 16-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 3 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 15Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 6V |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max): | 41ns, 32ns |
| -3db Bandwidth: | 35MHz |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 30pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -50dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
