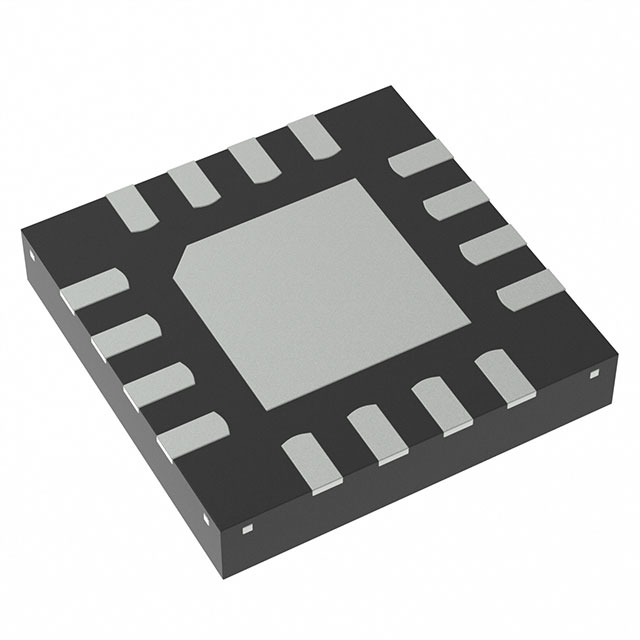

MUX36S08IRRJR
IC MUX 8:1 170OHM 16WQFN
| Part Description |
1 Circuit IC Switch 8:1 170Ohm 16-WQFN (4x4) |
|---|---|
| Quantity | 1,898 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 16-WQFN Exposed Pad |
|---|---|
| Device Package | 16-WQFN (4×4) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 170Ohm |
| Channel-to-Channel Matching (ΔRon): | 2.4Ohm |
| Voltage – Supply, Single (V+): | 10V ~ 36V |
| Voltage – Supply, Dual (V±): | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max): | 136ns, 75ns |
| Charge Injection: | 0.3pC |
| Channel Capacitance (CS(off), CD(off)): | 2.4pF, 7.5pF |
| Current – Leakage (IS(off)) (Max): | 40pA |
| Crosstalk: | -96dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
