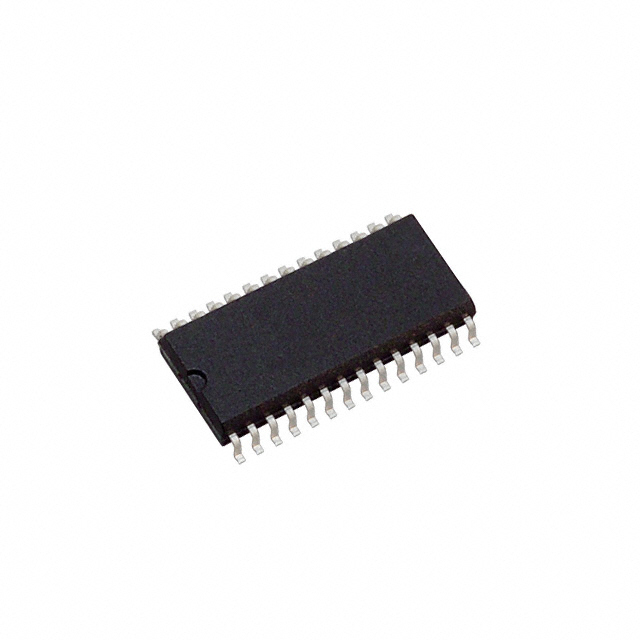

MUX507IDWR
IC MUX DUAL 8:1 200OHM 28SOIC
| Part Description |
2 Circuit IC Switch 8:1 200Ohm 28-SOIC |
|---|---|
| Quantity | 1,301 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 28-SOIC (0.295″”, 7.50mm Width) |
|---|---|
| Device Package | 28-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 200Ohm |
| Channel-to-Channel Matching (ΔRon): | 6Ohm |
| Voltage – Supply, Single (V+): | 10V ~ 36V |
| Voltage – Supply, Dual (V±): | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max): | 136ns, 78ns |
| Charge Injection: | 0.67pC |
| Channel Capacitance (CS(off), CD(off)): | 3pF, 7.5pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | -96dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
