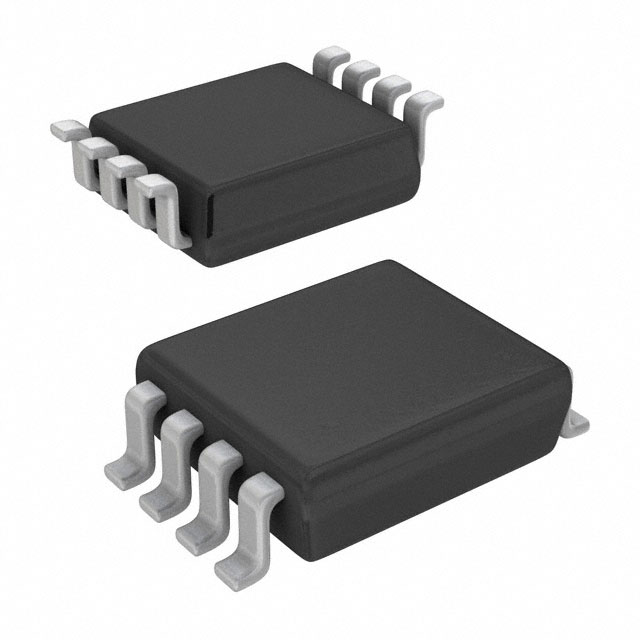

NC7WB66K8X

IC SWITCH SPST-NO X 2 10OHM US8

Part Description	2 Circuit IC Switch 1:1 10Ohm US8
Quantity	1,218 Available (as of May 6, 2026)

Product Category	Analog Switches, Multiplexers, Demultiplexers
Manufacturer	onsemi
Manufacturing Status	Obsolete
Manufacturer Standard Lead Time	N/A

Specifications

Part Package	8-VFSOP (0.091″”, 2.30mm Width)
Device Package	US8
Mounting Method	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Switch Circuit:	SPST – NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	10Ohm
Channel-to-Channel Matching (ΔRon):	200mOhm
Voltage – Supply, Single (V+):	1.65V ~ 5.5V
Switch Time (Ton, Toff) (Max):	3.2ns, 4.1ns
-3db Bandwidth:	300MHz
Channel Capacitance (CS(off), CD(off)):	5pF
Current – Leakage (IS(off)) (Max):	100nA
Crosstalk:	-70dB @ 10MHz
