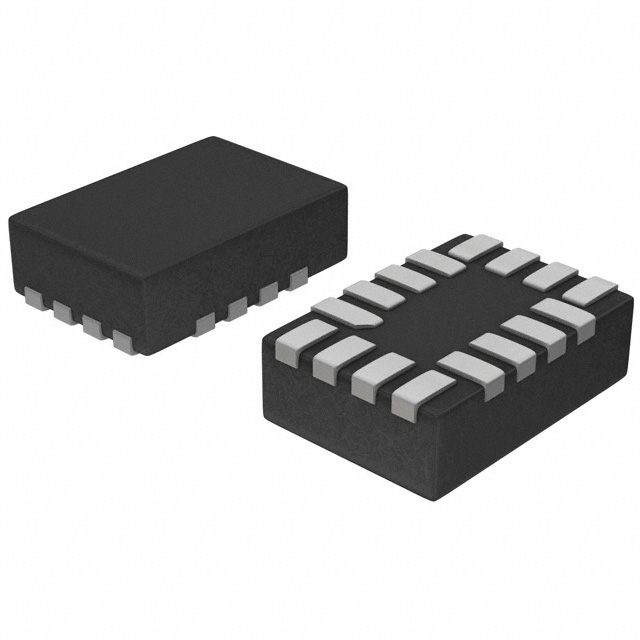

NLAS3799BLMNR2G
IC SWITCH DPDTX2 400MOHM 16WQFN
| Part Description |
2 Circuit IC Switch 2:2 400mOhm 16-WQFN (1.8x2.6) |
|---|---|
| Quantity | 1,388 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-WFQFN |
|---|---|
| Device Package | 16-WQFN (1.8×2.6) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | DPDT |
| Multiplexer/Demultiplexer Circuit: | 2:2 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 400mOhm |
| Channel-to-Channel Matching (ΔRon): | 50mOhm (Max) |
| Voltage – Supply, Single (V+): | 1.65V ~ 4.5V |
| Switch Time (Ton, Toff) (Max): | 50ns, 30ns |
| -3db Bandwidth: | 19MHz |
| Charge Injection: | 51pC |
| Channel Capacitance (CS(off), CD(off)): | 3pF |
| Current – Leakage (IS(off)) (Max): | 500nA |
| Crosstalk: | -90dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
