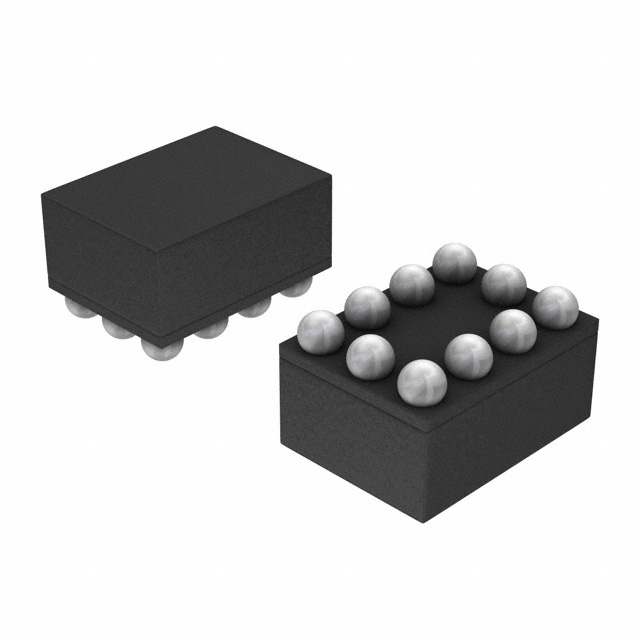

NLAS4685FCT1G
IC SW SPDTX2 800MOHM 10MICROBUMP
| Part Description |
2 Circuit IC Switch 2:1 800mOhm 10-Microbump |
|---|---|
| Quantity | 1,226 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 10-UFBGA, FCBGA |
|---|---|
| Device Package | 10-Microbump |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 800mOhm |
| Channel-to-Channel Matching (ΔRon): | 60mOhm |
| Voltage – Supply, Single (V+): | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 30ns, 25ns |
| -3db Bandwidth: | 11.5MHz |
| Charge Injection: | 20pC |
| Channel Capacitance (CS(off), CD(off)): | 208pF, 102pF |
| Current – Leakage (IS(off)) (Max): | 1µA |
| Crosstalk: | -81dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
