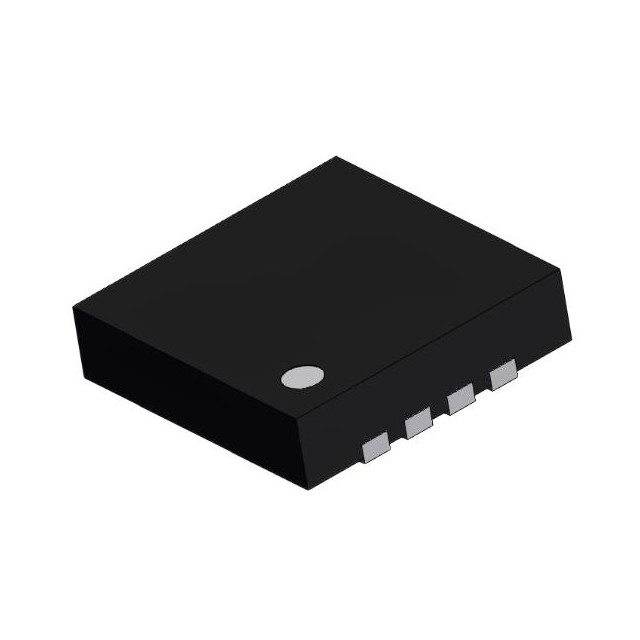

NLAS5213AMUT
IC SWITCH DPST 8UDFN
| Part Description |
2 Circuit IC Switch 1:1 1.3Ohm 8-UDFN (1.8x1.2) |
|---|---|
| Quantity | 149 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 1 Weeks |
| Datasheet |
Specifications
| Part Package | 8-UFDFN |
|---|---|
| Device Package | 8-UDFN (1.8×1.2) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 1.3Ohm |
| Channel-to-Channel Matching (ΔRon): | 150mOhm |
| Voltage – Supply, Single (V+): | 1.65V ~ 4.5V |
| Switch Time (Ton, Toff) (Max): | 20ns, 15ns |
| -3db Bandwidth: | 496MHz |
| Channel Capacitance (CS(off), CD(off)): | 19pF |
| Current – Leakage (IS(off)) (Max): | 1µA |
| Crosstalk: | -97dB @ 1MHz |
Environmental
| REACH Compliance | REACH not applicable |
|---|---|
| RoHS Compliance | Not applicable |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
