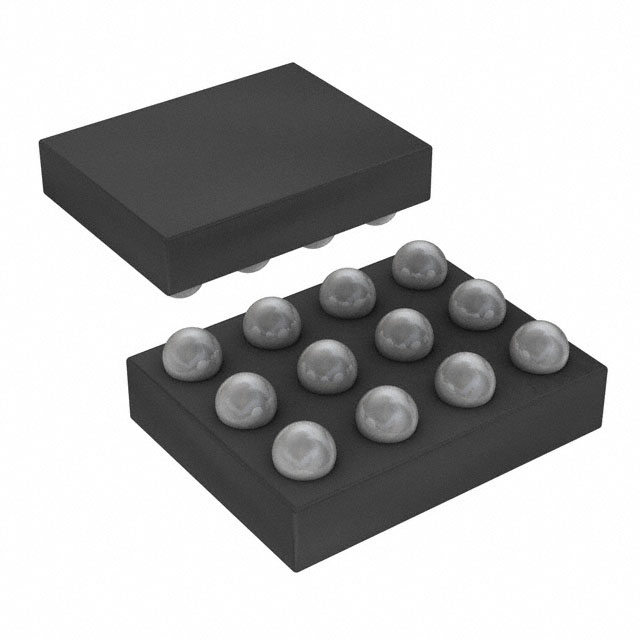

NLAS54404FCTAG
IC SWITCH SPDTX2 2.1OHM 12WLCSP
| Part Description |
2 Circuit IC Switch 2:1 2.1Ohm (Typ) 12-WLCSP (1.6x1.2) |
|---|---|
| Quantity | 1,499 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 12-UFBGA, WLCSP |
|---|---|
| Device Package | 12-WLCSP (1.6×1.2) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 2.1Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon): | 4.2mOhm |
| Voltage – Supply, Single (V+): | 3V ~ 3.6V |
| Switch Time (Ton, Toff) (Max): | 20.7µs, 100ns |
| -3db Bandwidth: | 250MHz |
| Channel Capacitance (CS(off), CD(off)): | 6.8pF |
| Crosstalk: | -90dB @ 20kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
