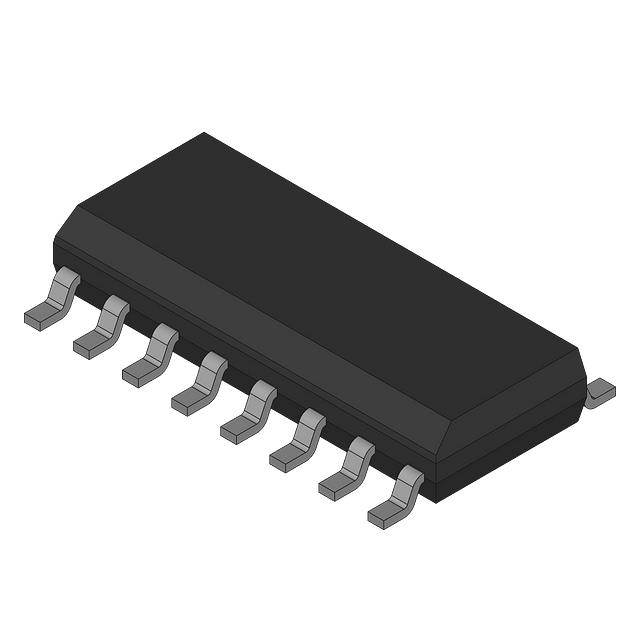

NLHV4052DR2G
IC SW SPST-NOX2 280OHM 16SOIC
| Part Description |
2 Circuit IC Switch 1:1 280Ohm 16-SOIC |
|---|---|
| Quantity | 197 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 280Ohm |
| Channel-to-Channel Matching (ΔRon): | 10Ohm |
| Voltage – Supply, Single (V+): | 3V ~ 18V |
| -3db Bandwidth: | 17MHz |
| Current – Leakage (IS(off)) (Max): | 100nA |
Environmental
| REACH Compliance | REACH not applicable |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
