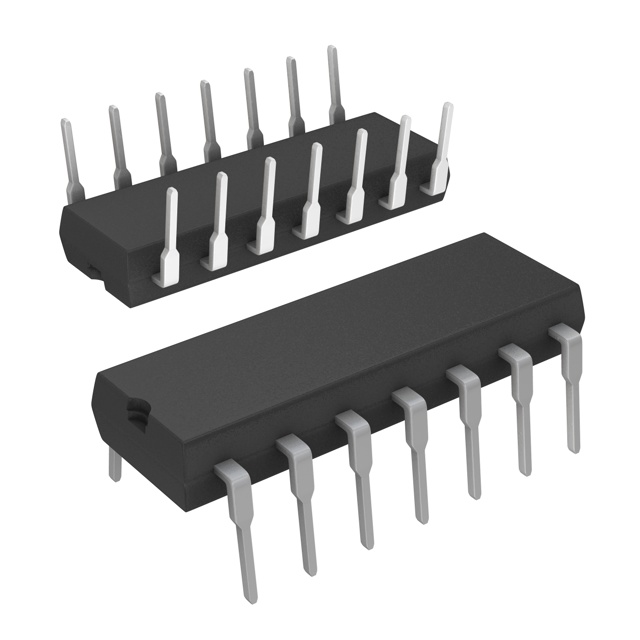

NLV14066BCP
IC SWITCH SPST-NOX4 280OHM 14DIP
| Part Description |
4 Circuit IC Switch 1:1 280Ohm 14-PDIP |
|---|---|
| Quantity | 1,132 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 14-DIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 14-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 280Ohm |
| Channel-to-Channel Matching (ΔRon): | 10Ohm |
| Voltage – Supply, Single (V+): | 3V ~ 18V |
| -3db Bandwidth: | 65MHz |
| Channel Capacitance (CS(off), CD(off)): | 7.5pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
