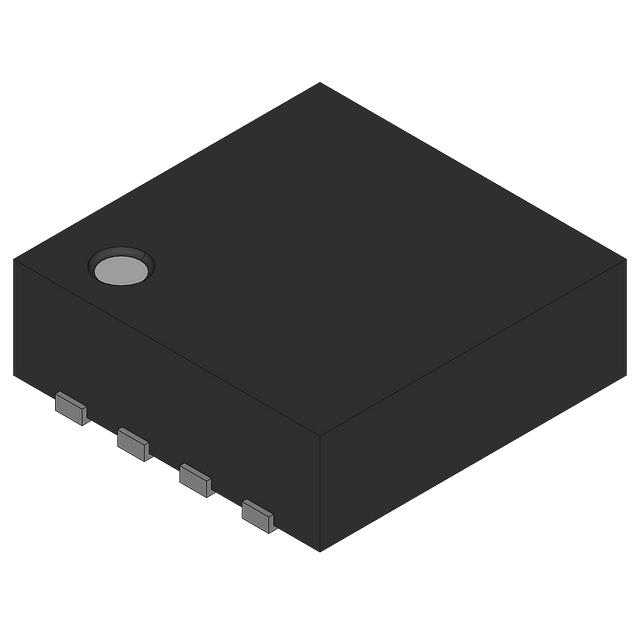

NX3L2G384GM,125
IC SW SPST-NOX2 900MOHM 8XQFN
| Part Description |
2 Circuit IC Switch 1:1 900mOhm 8-XQFN (1.6x1.6) |
|---|---|
| Quantity | 1,175 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | NXP Semiconductors |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 8-XFQFN Exposed Pad |
|---|---|
| Device Package | 8-XQFN (1.6×1.6) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 900mOhm |
| Channel-to-Channel Matching (ΔRon): | 20mOhm |
| Voltage – Supply, Single (V+): | 1.4V ~ 4.3V |
| Switch Time (Ton, Toff) (Max): | 24ns, 7ns |
| -3db Bandwidth: | 60MHz |
| Charge Injection: | 6pC |
| Channel Capacitance (CS(off), CD(off)): | 35pF |
| Current – Leakage (IS(off)) (Max): | 10nA |
| Crosstalk: | -90dB @ 100kHz |
Environmental
| REACH Compliance | REACH not applicable |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
