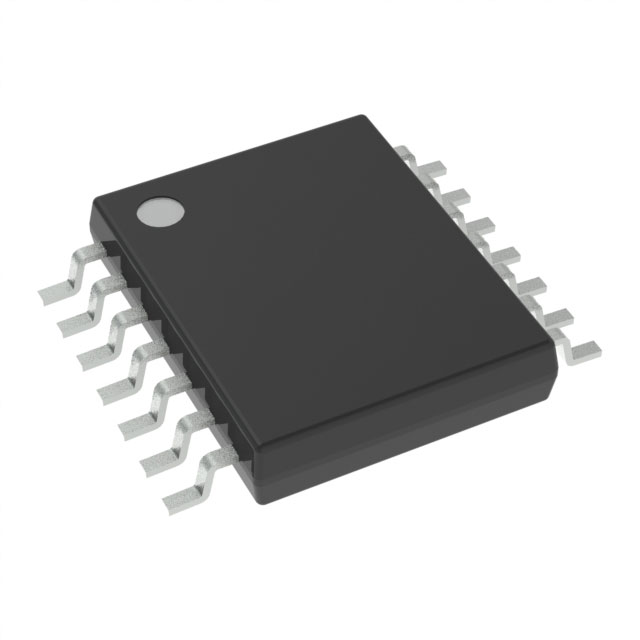

SN74HC4066PWR
IC SW SPST-NOX4 30OHM 14TSSOP
| Part Description |
4 Circuit IC Switch 1:1 30Ohm (Typ) 14-TSSOP |
|---|---|
| Quantity | 42 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Last Time Buy |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 14-TSSOP (0.173″”, 4.40mm Width) |
|---|---|
| Device Package | 14-TSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 30Ohm (Typ) |
| Voltage – Supply, Single (V+): | 2V ~ 6V |
| Switch Time (Ton, Toff) (Max): | 31ns, 34ns |
| -3db Bandwidth: | 30MHz |
| Channel Capacitance (CS(off), CD(off)): | 0.5pF, 9pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -45dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
