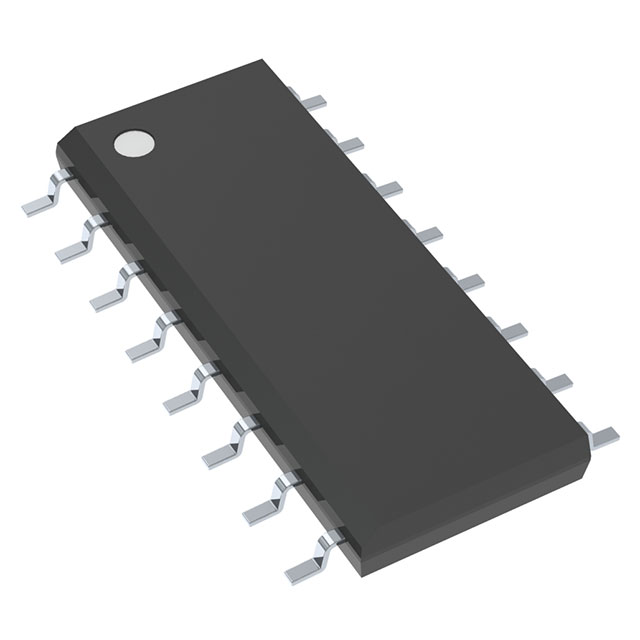

SN74LV4052ATDRQ1
IC SWITCH SP4T X 2 100OHM 16SOIC
| Part Description |
2 Circuit IC Switch 4:1 100Ohm 16-SOIC |
|---|---|
| Quantity | 1,604 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 20 Weeks |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 20Ohm (Max) |
| Voltage – Supply, Single (V+): | 2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 18ns, 18ns |
| -3db Bandwidth: | 50MHz |
| Current – Leakage (IS(off)) (Max): | 1µA |
| Crosstalk: | -45dB @ 1MHz |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
